Tein 4X4 Damper Sport Suspension Kit - Suzuki Jimny Sierra JB74W

SKU: VSUC2-F1SS2-1

Select all options to see availability

PRICE:

£766.80 £852.00
Split your purchases into 3 interest-free payments. Pay £255.60 GBP/mo.
18+, T&C apply, Credit subject to status.
  • Description
  • Suitable For

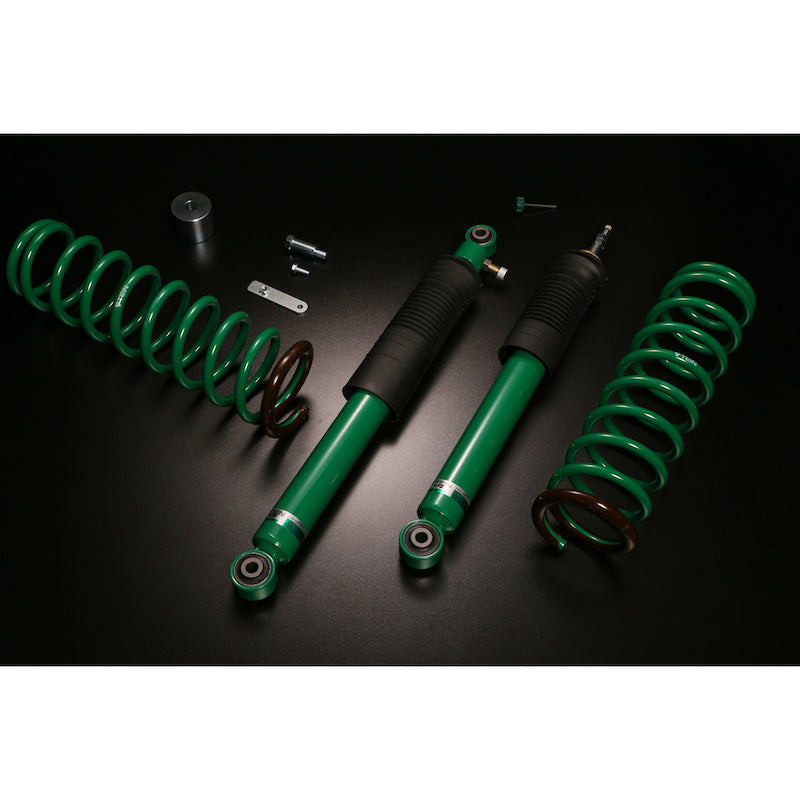

Tein's offroad vehicle specific kit, 4X4 is a 1" lift suspension kit, featuring hydraulic bump stops for improved comfort and 16 levels of damping force adjustability.

Each kit requires the use of existing OE to mounts.

Key Features:

  • 16-level damping adjustment
  • 1-inch lift with ride-height adjustment
  • Hydraulic bump stops for comfort
  • Uses your existing OE mounts (not included)
  • Off-road vehicle specific

Lowering Specification:

  • Spring rate (Front / Rear): 2.5 / 2.2 kgf/mm
  • Ride height drop: Front 55mm, Rear 40mm

Fits the following vehicles:

  • Suzuki Jimny JB74W (2018-2024)

Fitment Notes: Additional device, such as mirror or camera, is required to secure the front vision, in order to comply with Japan's vehicle safety regulations on forward/lateral field visions. Replacement of brake hose (with 50mm+ longer one than OE) and locking hub vacuum hose is required. Replacement of caster-corrections bushings and lateral rod is recommended. Not ride height adjustable. Front: when tightening, be sure to apply the appropriate torque as specified in the included manual. Over-torquing might lead to piston rod damage/breakage. Rear: right and left springs differ. Be sure to install on the correct side.

Compatible OEM Numbers

  • 2018 to 2024 Suzuki Jimny (JB74W)
