Spoon Sports Twinblock Brake Caliper Set - Civic Type R EK9

5% off
SKU: 45020-DCR-G00-EK9

No stock at Torque GT i We don't have this in stock, but we can find out from the supplier how quickly we can get it for you.

Usually ships in 4 weeks from order date

PRICE:

£1,285.35 £1,353.00
(1)
Split your purchases into 3 interest-free payments. Pay £428.45 GBP/mo.
18+, T&C apply, Credit subject to status.
  • Description
  • Suitable For

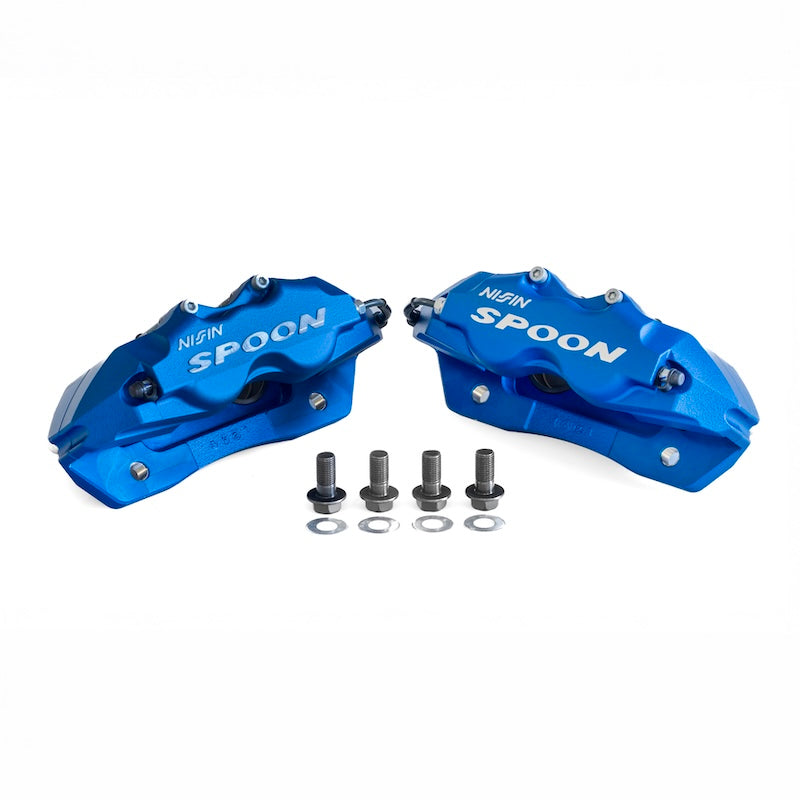

Spoon Sports Twinblock Brake Caliper Set, for Honda Civic EK4 and Type R EK9

The Spoon Sports Twin-Block Caliper Set, part number 45020-DCR-G00, is a lightweight differential-bore opposed four-piston caliper set that bolts onto the EK9 with no modification.

The aim is lower unsprung weight. A standard caliper weighs 5,200g each, while the Twinblock weighs 2,400g. The four-piston opposed design allows delicate brake control, and the lower unsprung weight greatly improves tyre contact and tracking while reducing the load on brakes and tyres. The set uses brake pads of the same shape as the EK9 factory pad, and keeps a stock feel for daily driving.

Spoon Sports developed the calipers over a year for the EK9 Civic Type R and DC2 Integra Type R, and they are made by Nissin, the OE supplier for Honda brakes.



Key features

  • Lightweight: 2,400g per caliper against 5,200g for the standard caliper, thanks to aluminium construction.
  • Differential-bore opposed four pistons: allows fine brake control, evens out pad wear and reduces rotor warpage.
  • Made by Nissin: the OE supplier for Honda brakes.
  • Developed over a year: engineered for the EK9 Civic Type R and DC2 Integra Type R.
  • Better tyre contact: lower unsprung weight improves grip and tracking.
  • Less brake and tyre load: reduced strain on brakes and tyres.
  • Stock feel: keeps a stock feel for daily driving.
  • EK9 pad shape: uses pads of the same shape as the factory EK9 pad.



Specifications

Brand Spoon Sports
Part number 45020-DCR-G00-EK9 (Spoon 45020-DCR-G00)
Supplied as Set
Caliper weight 2,400g each (standard 5,200g)
Pad Same shape as factory EK9 pad
Large rotor 45251-4H1014 (for cars with a standard rotor of 282mm or smaller)
Model codes EK4 (early and late), EK9 (early and late), plus others listed by Spoon
Engines B16A, B16B



Fitment

Fits the Honda Civic EK4 and Type R EK9 (1996-2000). Spoon states bolt-on fitment for the EK9. Depending on your setup you may need additional discs, extended studs and spacers, so see our Spoon Sports caliper fitment guide. Cars with a standard rotor of 282mm or smaller need the large-diameter rotor 45251-4H1014. The caliper is wider than standard and may foul your wheel; spacers can push the tyre past the fender and risk failing inspection, so check your wheels with your installer before ordering.



Frequently asked questions

How much lighter is the Twinblock than the standard caliper?

2,400g per caliper against 5,200g for the standard one.

Who makes the Twinblock caliper?

Nissin, the OE supplier for Honda brakes. Spoon Sports developed it over a year for the EK9 Civic Type R and DC2 Integra Type R.

Will I need a bigger rotor?

If your standard rotor is 282mm or smaller, Spoon says you need the large-diameter rotor, part number 45251-4H1014. You may also need extended studs and spacers.

Which pads does it use?

Pads of the same shape as the factory EK9 pad, so there is a wide choice of compounds.

Compatible OEM Numbers

  • 1996 to 2000 Honda Civic (EK)
  • 1997 to 2000 Honda Civic Type R (EK9)

Free UK Delivery

When you spend over £100

14 Day Returns

See our Returns Policy for details

  • 5 stars: 0 (0%)
  • 4 stars: 1 (100%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Carlyle Astill

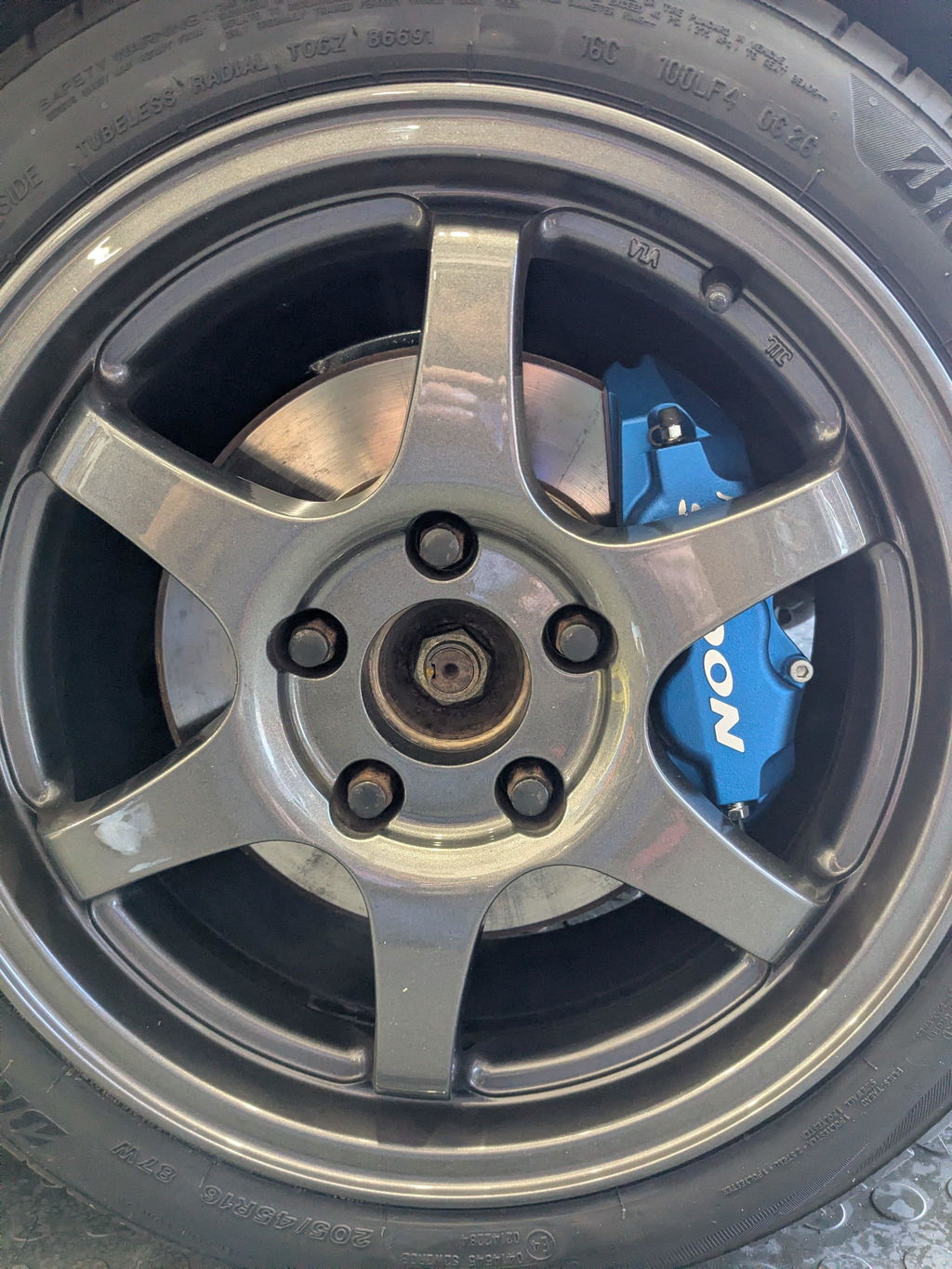

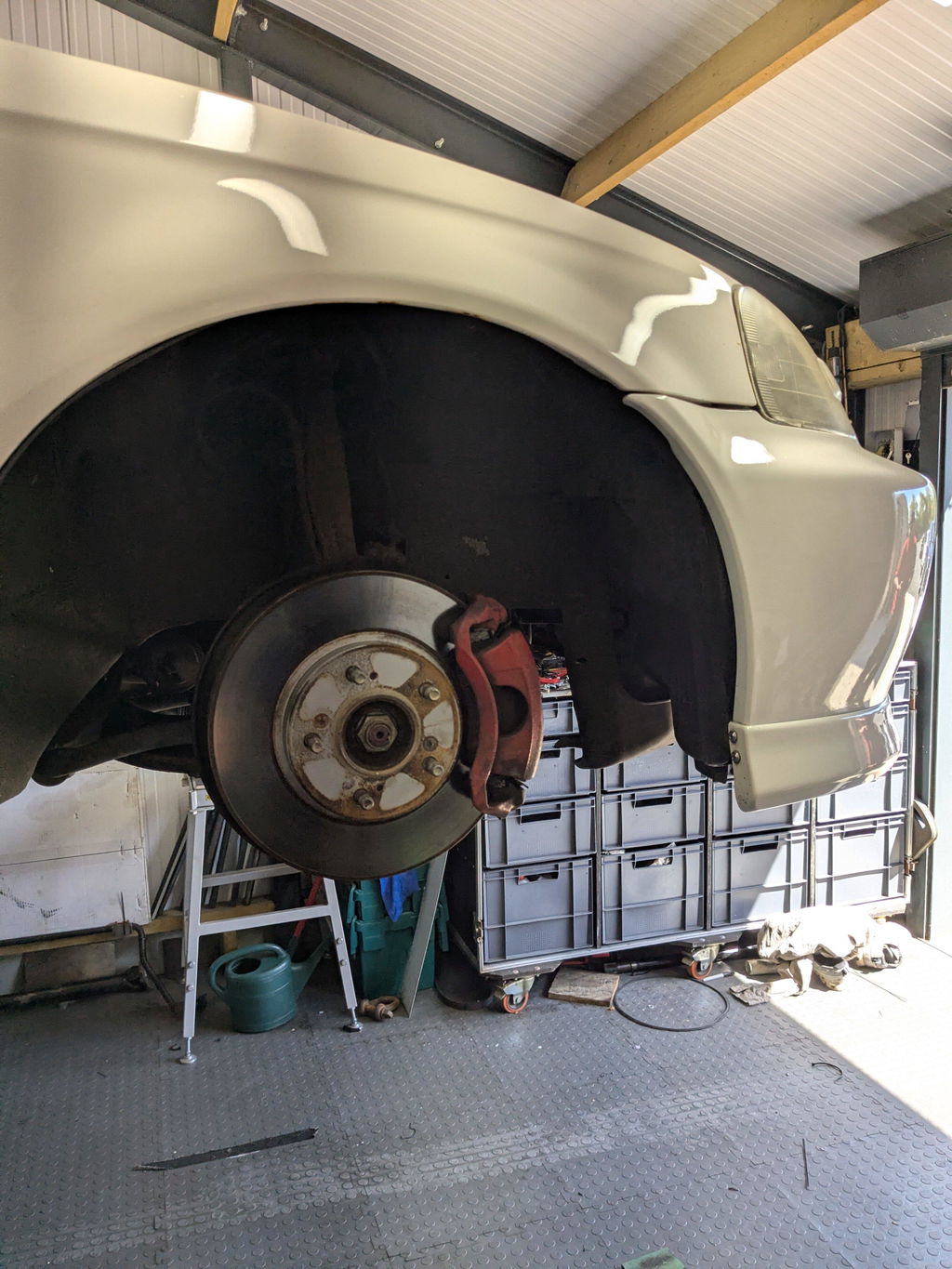

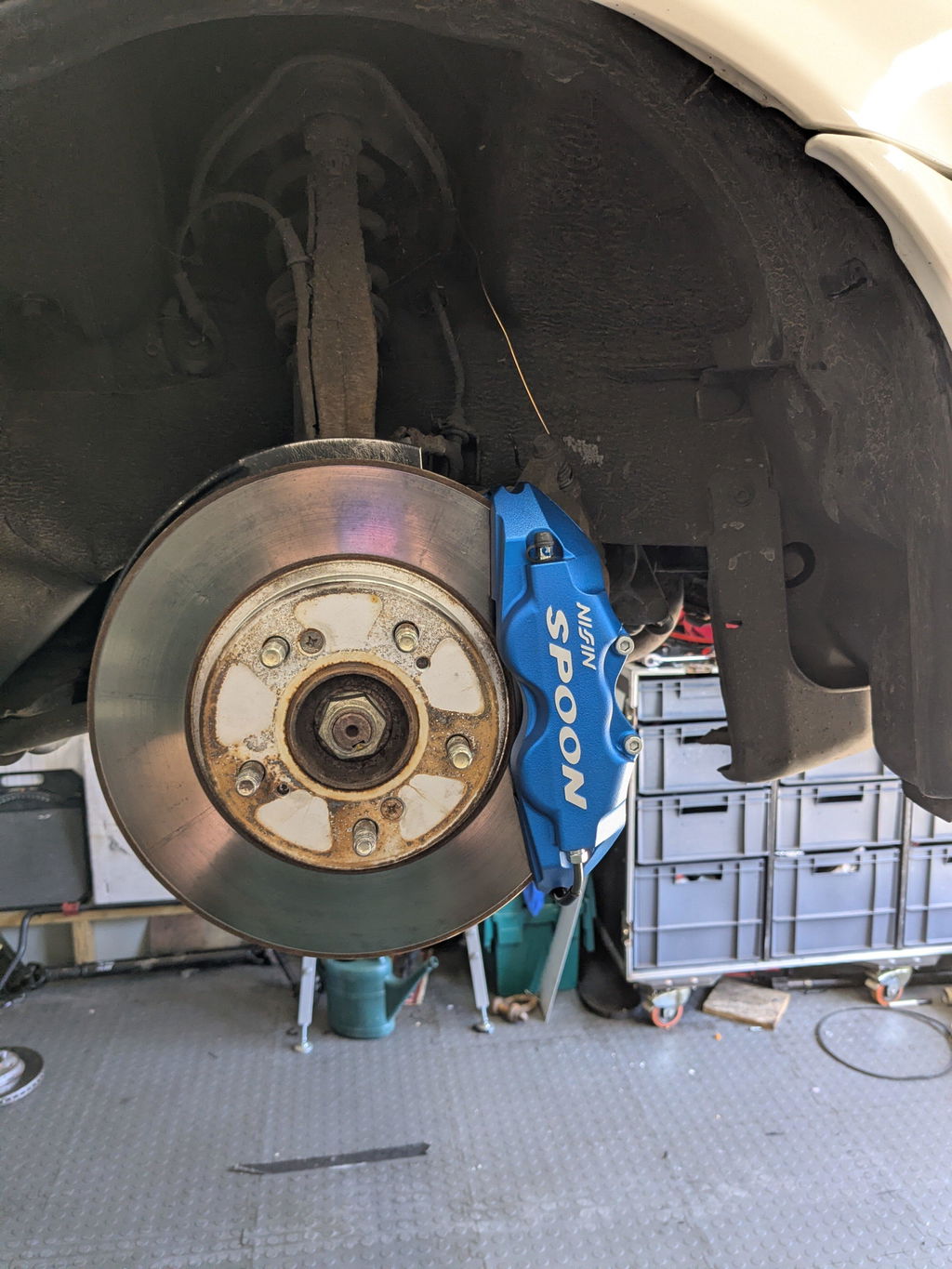

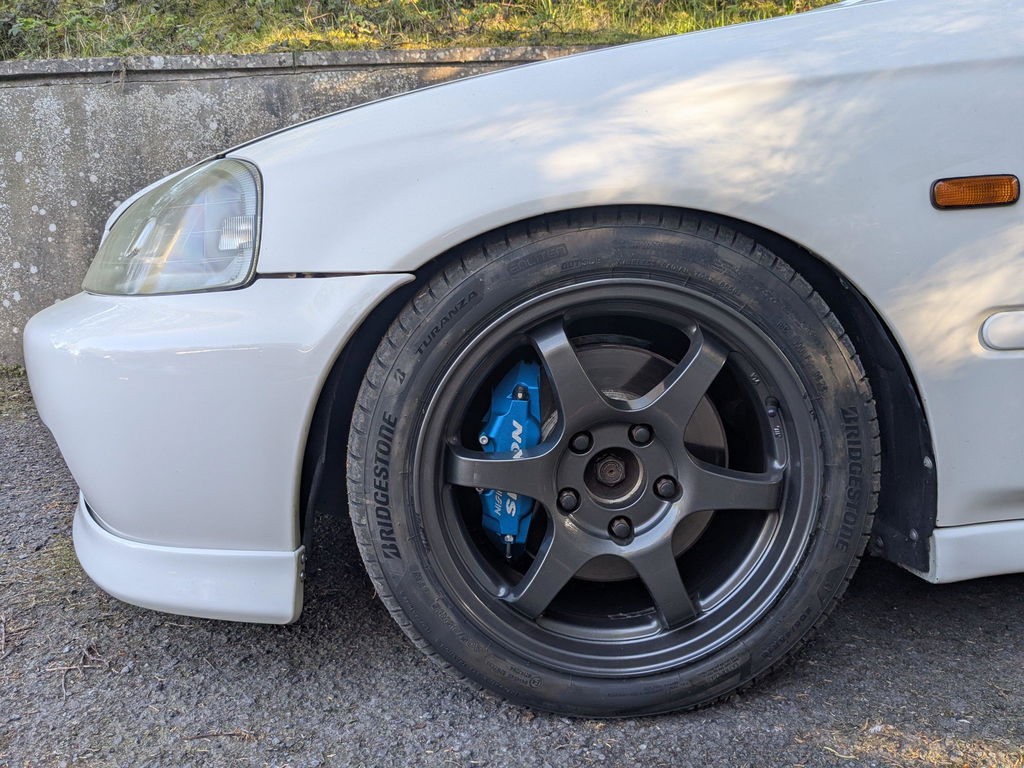

Spoon brake calipers for my EK9

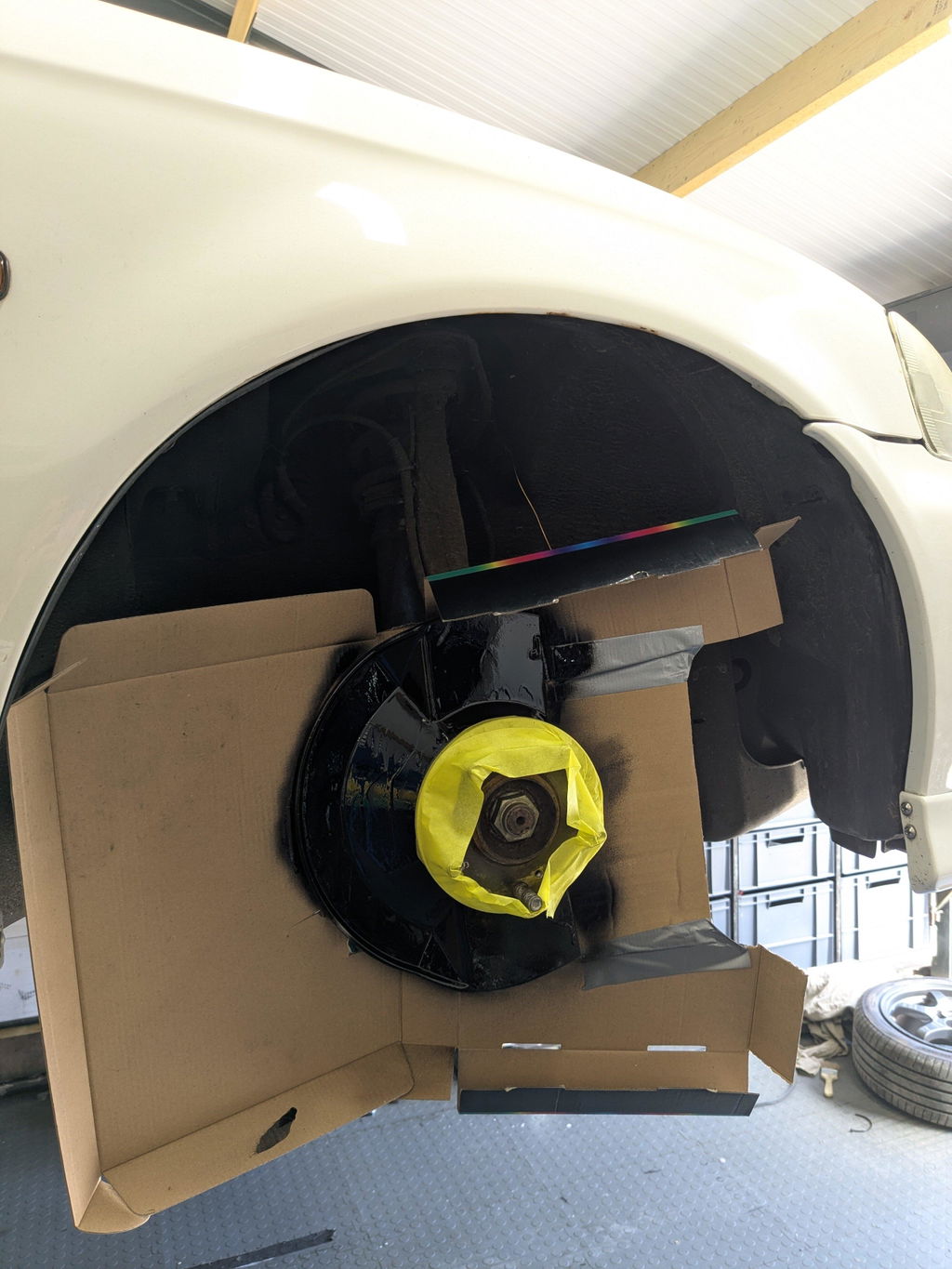

Always wanted to do this modification and now I got the chance as I got some discount. Fitted the new spoon calipers with my friend. Not a direct fit as it says. You have to cut the back plate. Plus if you have standard brake lines. You have to bolt the caliper first then the brake line. If you have standard brake pads. The back one has to have the lugs shaved down. If you have the tools it's easy enough. Took around 3-4hours to fit and bleed. What a transformation though to the feel of the braking. I would recommend these to anyone thinking about it. But take note you will need something to cut and shave metal.
