Spoon Sports Lowering Springs - Civic Type R FL5
PRICE:
18+, T&C apply, Credit subject to status.
- Description
- Suitable For

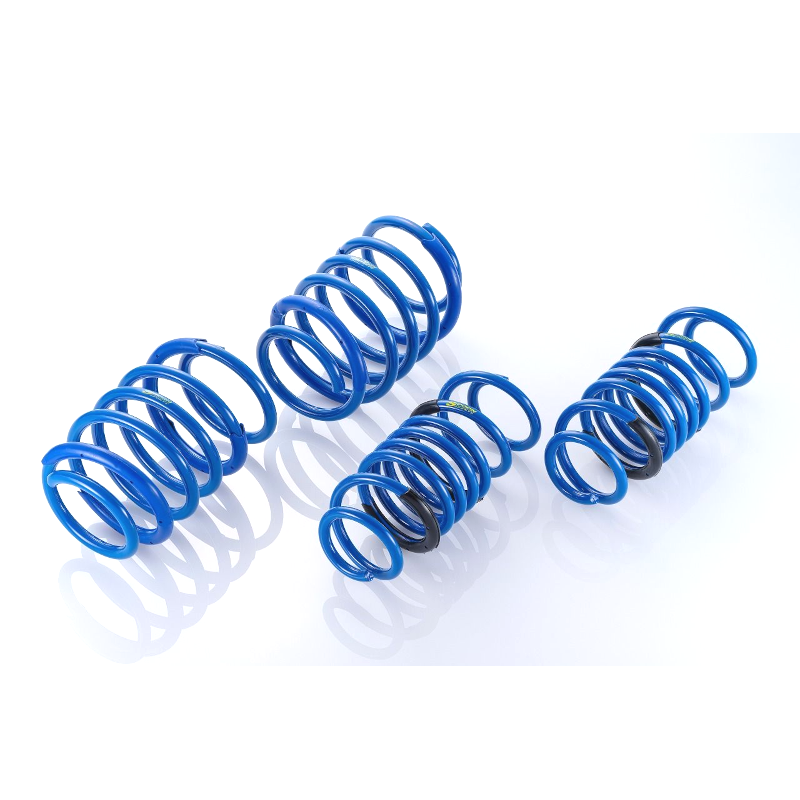

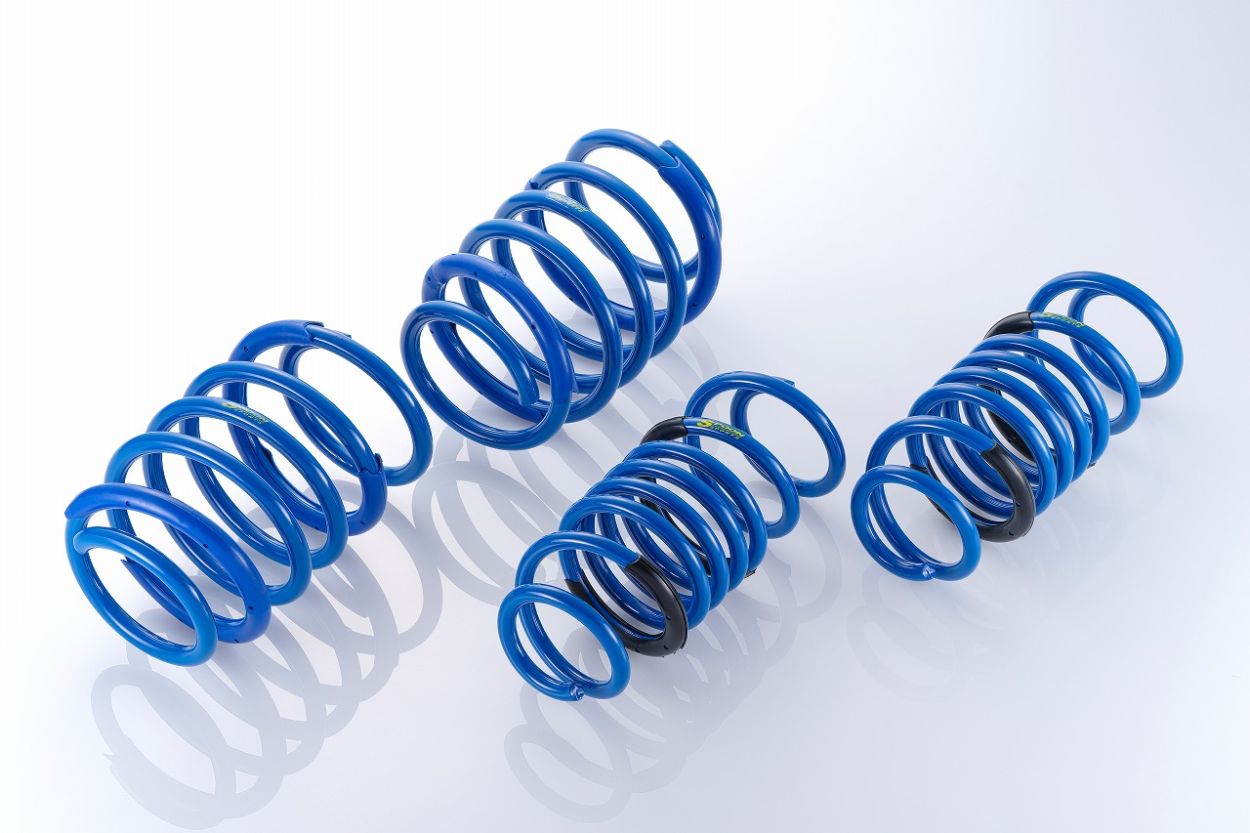

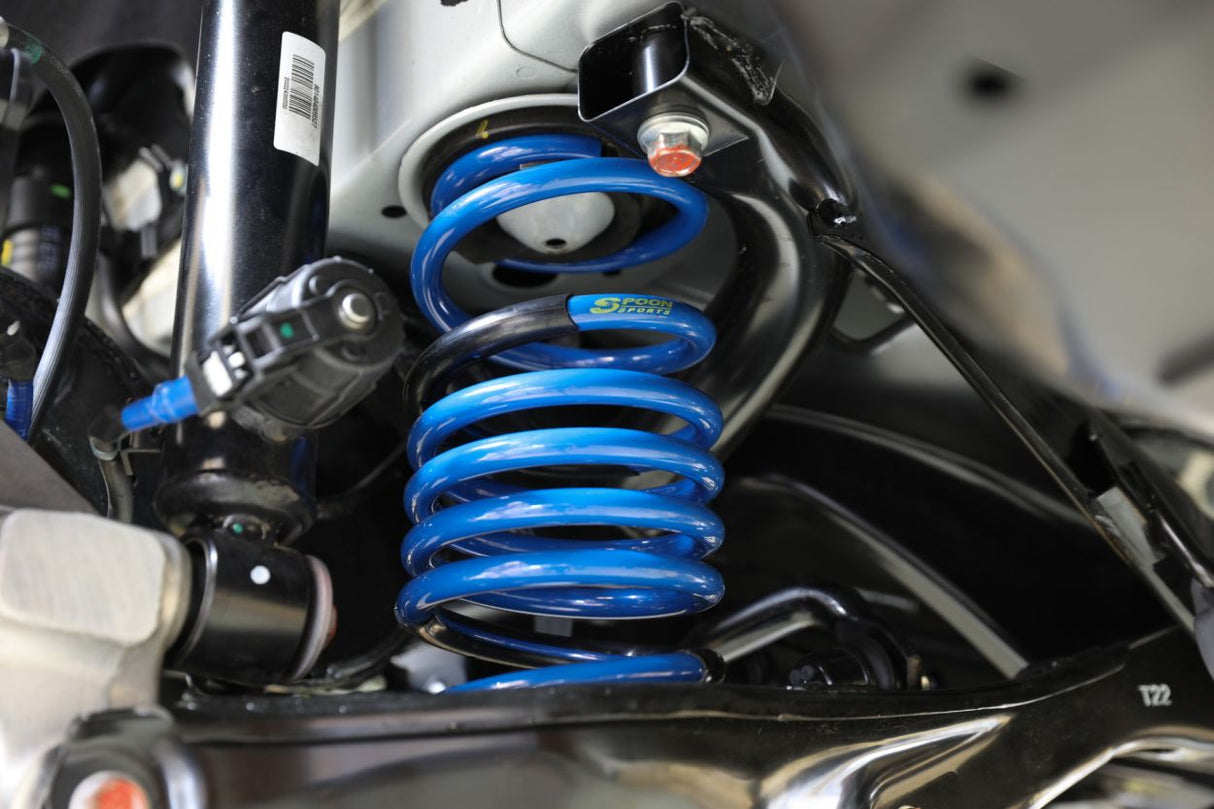

Spoon Sports Progressive Lowering Springs, for Honda Civic Type R FL5
The Spoon Sports Progressive Spring, part number 51400-FL5-001, is an irregular-pitched, barrel-shaped lowering spring set for the Civic Type R FL5, with spring rates about 10% above standard.
Spoon tested the stock FL5 on circuits, winding roads and city streets. The set-up is aggressive with very high roll stiffness, but on track the roll can fail to build smoothly on corner entry, and on the road the car can feel a little too hard. These springs aim to improve sporting performance at every stage while keeping the ride comfortable.
The 20mm drop lowers the centre of gravity and adds rebound stroke, so the car deals better with gaps and undulations. More coils and a longer length of steel lower the load needed to start the spring moving, and the irregular-pitch barrel shape tunes how the rate builds. The rate stays low early in the stroke for town comfort, then rises under deep, high-load compression at speed.
Key features
- Spring rate: about 10% above standard, at 5.5kgf/mm front and 5.0kgf/mm rear.
- Ride height: about 20mm lower, front and rear.
- Irregular-pitch barrel shape: tunes how the rate rises through the stroke.
- Lower starting load: more coils and longer steel for a more supple initial response.
- Tested widely: circuit, winding roads and town streets.
Specifications
| Brand | Spoon Sports |
|---|---|
| Part number | 51400-FL5-001 |
| Supplied as | Set |
| Ride height change | -20mm front, -20mm rear |
| Spring rate, front | 5.5kgf/mm |
| Spring rate, rear | 5.0kgf/mm |
| Model code | 6BA-FL5 |
| Engine | K20C |
Fitment

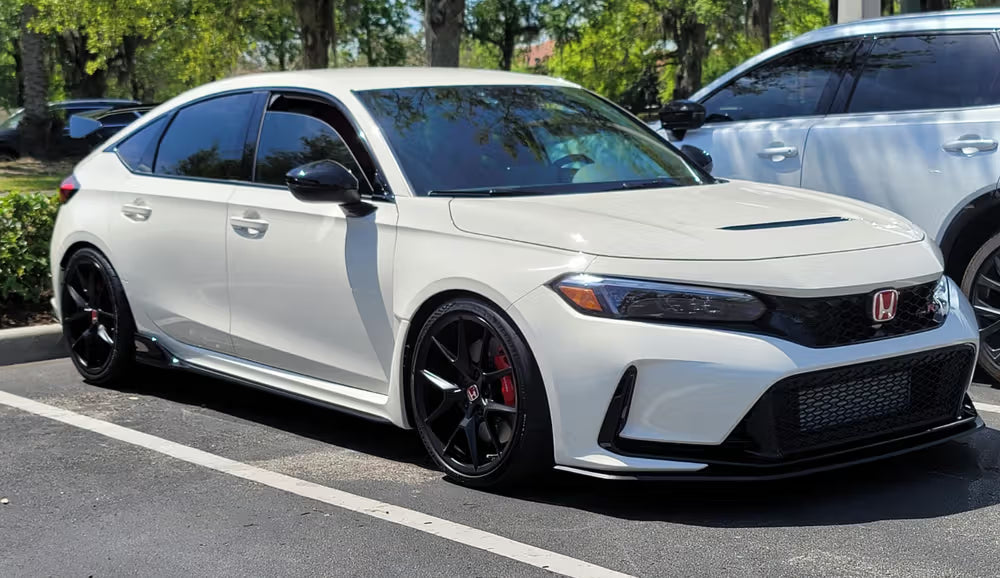

Fits the Honda Civic Type R FL5 (2022-2024), 6BA-FL5. Spoon also lists its Spring Rubber Medium (rear) and Large (front) as applicable, two sets of each per car.
Frequently asked questions
How much lower will my FL5 sit?
About 20mm lower than standard, front and rear.
Will the ride get harsher?
Spoon built the springs for comfort as well as sporting performance, using extra coils, longer steel and an irregular-pitch barrel shape to keep the early stroke supple.
How much stiffer are they?
Spring rate is about 10% above standard, at 5.5kgf/mm front and 5.0kgf/mm rear.
Compatible OEM Numbers
- 2022 to 2026 Honda Civic Type R (FL5)
