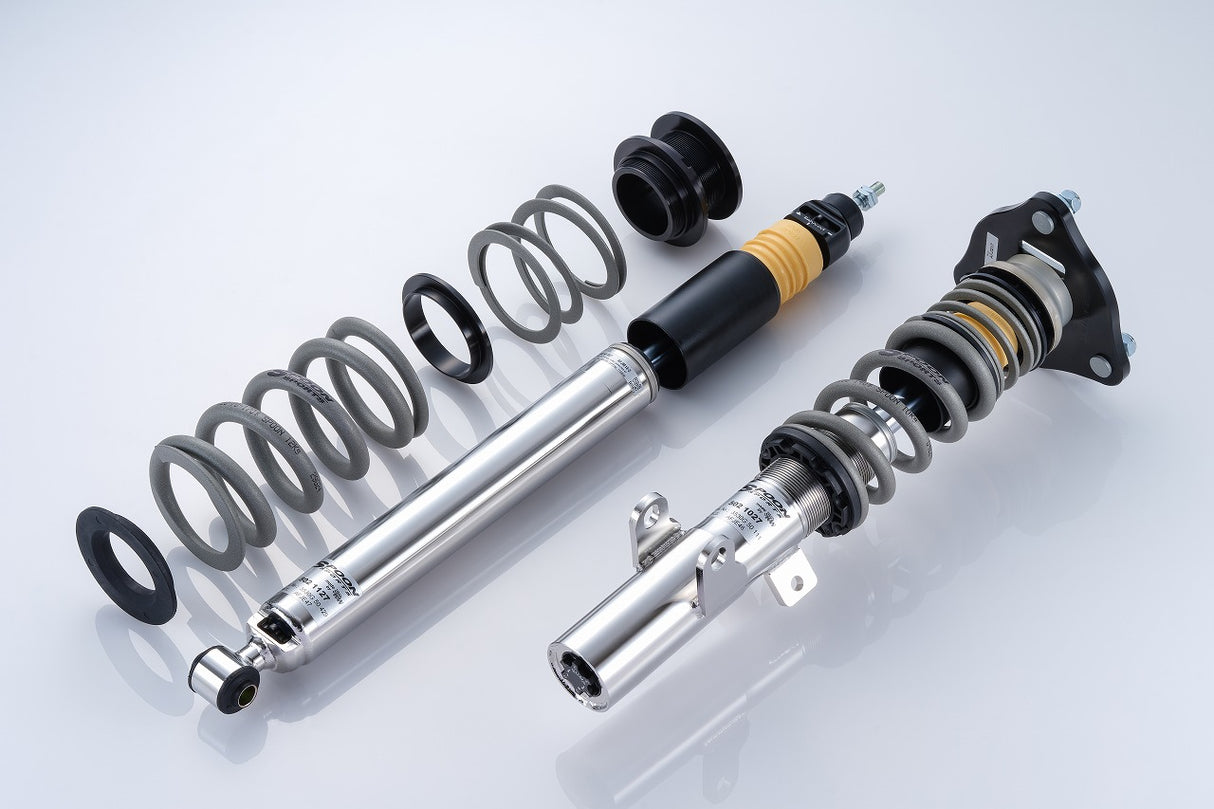

Spoon Sports Full Spec Damper Suspension Kit - Civic Type R FK8 / FL5

SKU: 51600-FL5-G20

Available on Backorder

Usually Ships in 4 Weeks

PRICE:

£6,490.00
Split your purchases into 3 interest-free payments. Pay £2,163.33 GBP/mo.
18+, T&C apply, Credit subject to status.
  • Specification
  • Description
  • Suitable For

Product Features:

Spring Rate Fr: 10kgf/mm (140mm ID60), Rr: 12kgf/mm (170mm ID70)
Factory height: compared to stock Fr: -20mm Rr: -25mm
Factory height: jack point Fr: 140mm Rr: 155mm
Recommended vehicle height adjustment range: compared to stock Fr: 0 to -35mm Rr: 0 to -40mm
Damping adjustment range BUMP 12 steps/REBOUND 16 steps
Recommended damping dial position BUMP Fr: 6 steps Rr: 6 steps
REBOUND Fr: 9 steps Rr: 9 steps
Factory camber value Fr: -2 Rr: -2
Camber adjustment range Fr: -1.0 to -3.0

Damper control canceller, hook wrench, and damping adjustment dial included.

Spoon Sports developed this full-spec damper kit for the Civic Type R FK8 and FL5 in partnership with KW USA, using data from the Thunderhill 25 Hours with the FK8 in 2021 and the FL5 in 2023. It suits the street, the circuit and winding roads.

Key Features:

  • Two-way adjustable damping on the extension and compression sides.
  • Camber-adjustable front upper mounts.
  • Wide adjustment range to suit different driving stages.

Specifications:

  • Spring rate: 10kgf/mm front (140mm ID60), 12kgf/mm rear (170mm ID70)
  • Ride height change from stock: -20mm front, -25mm rear
  • Jack point height: 140mm front, 155mm rear
  • Recommended height adjustment range from stock: 0 to -35mm front, 0 to -40mm rear
  • Damping adjustment: 12 bump steps, 16 rebound steps
  • Recommended dial position: 6 bump steps front and rear, 9 rebound steps front and rear
  • Factory camber: -2 degrees front and rear; front adjustment range -1.0 to -3.0 degrees

The kit includes a damper control canceller, hook wrench and damping adjustment dial.

Fits the following vehicles:

  • Honda Civic Type R FK8 (2017-2021)
  • Honda Civic Type R FL5 (2022-2024)

Compatible OEM Numbers

  • 2017 to 2021 Honda Civic Type R (FK8)
  • 2022 to 2026 Honda Civic Type R (FL5)
