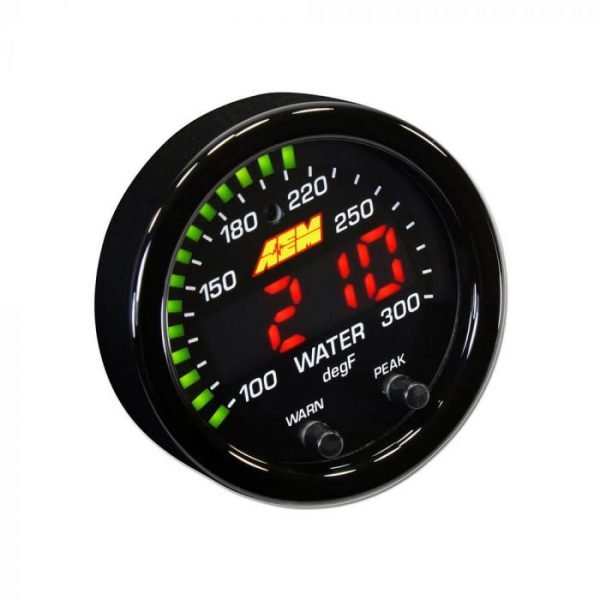

AEM X-Series Temperature Gauge 150C / 300F

Features:

• Excellent accuracy and speed
• Easy to read sweeping LED needle
• 52mm housing
• User selectable warnings
• Comes with black bezel and double sided black water temperature faceplate

Please Note:

• Oil temp faceplates are optional extras,you also need to purchase the optional accessory kit 30-0302-ACC

Focussing on manufacturing reliable, affordable and unique products that truly deliver on their promises, AEM is a company that is constantly looking to change the status quo when it comes to automotive electronics. From their boost gauges to their fuel pumps, AEM products are among some of the most sought after electronics, trusted by street enthusiasts and race teams alike

AEMs X-Series Temperature gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate oil or fuel pressure readouts in their high performance vehicle.

Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED needle lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.

Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825, with a cup depth of only 0.200. This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric centre LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analogue outputs are also included for inputting into data loggers and engine management systems.
