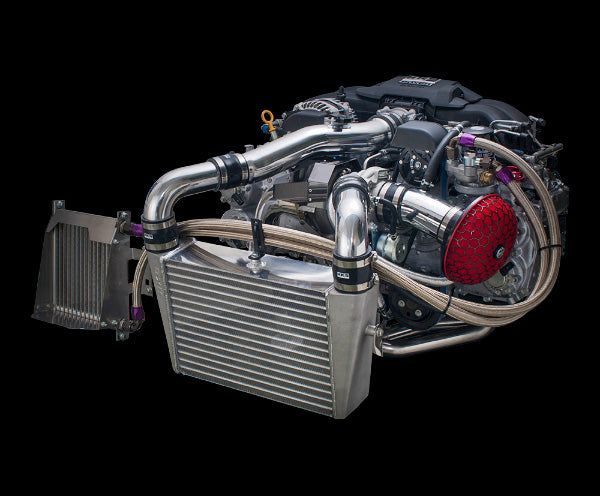

HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ.
Specifically designed for the Toyota GT86 and Subaru BRZ the kit utilises the latest turbo technology to provide a responsive yet powerful turbo set up. 450ps has been achieved on HKS Japan’s test vehicle.

Kit Parts:

• GTIII-RS Turbocharger Assy with an actuator
• Oil & Water Piping Parts
• Air Cleaner,Suction Pipe
• Front-mounted Intercooler,Piping
• Exhaust Manifold
• Insulator Cover,Insulator Sheet
• Gaskets,Brackets,Bolts,etc.
• For 11001-KT001,CATless Extension
• For 11001-AT005,Extension with CAT

Note:

• Reinforced fuel parts such as injectors are required
• Pressure sensor is required separately
• Engine management parts are not included in this kit
• Resetting is required
• Reinforced clutch is required to avoid slippage of the clutch disk that may occur due to significant torque characteristic change
• It is strongly recommended to install an oil cooler to protect the engine

HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ.

GTIII-RS turbine that is the best match with 2L engine, special designed turbo housing, and other special parts are made by HKS special turbo technology.

This kit is available from a stock to tuned engine. The engine output will reach 450ps when this kit is installed to a tuned engine.

KIT PARTS

GTIII-RS Turbocharger Assy with an actuator.
Oil & Water Piping Parts
Air Cleaner, Suction Pipe
Front-mounted Intercooler, Piping
Exhaust Manifold,
For 11001-KT001, CATless Extension
For 11001-AT005, Extension with CAT
Insulator Cover, Insulator Sheet
Gaskets, Brackets, Bolts, etc.

※This results were obtained through the in-house test.
The actual values may be different due to the measuring instrument and/or each vehicle's specifications.

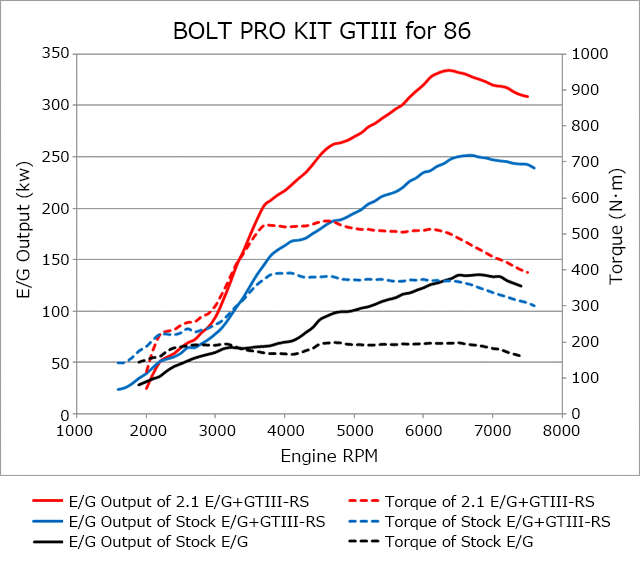

MAX ENGINE OUTPUT

2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
NA Stock : 136kw(185ps)/6800rpm

MAX TORQUE

2.1L E/G + GTIII-RS : 536N･m(55kgf･m)/4600rpm
Stock E/G+ GTIII-RS : 391N･m(40kgf･m)/4100rpm
NA Stock : 199N･m(20kgf･m)/4100rpm

Stock Engine Test Vehicle Spec

LEGAMAX SPORTS
FLASH EDITOR
EVC6 IR
I/J 440cc
LA CLUTCH
 2.1L Engine Test Vehicle Spec.
2.1L Piston, Con'rod, Crankshaft, Camshaft, Gasket
SUPER FIRE RACING M45HL
Hi-POWER Muffler
Prototype Front Pipe, Prototype CATless Center Pipe
Reinforced fuel parts
FLASH EDITOR
EVC6 IR

Product Notes

※Reinforced fuel parts such as injectors are required.
※Pressure sensor is required separately.
※Engine management parts are not included in this kit.
※Resetting is required.
※Vehicle modification is required in order to install this kit (Refer to the separated information.)
※Reinforced clutch is required to avoid slippage of the clutch disk that may occur due to significant torque characteristic change.
※It is strongly recommended to install an oil cooler to protect the engine.
