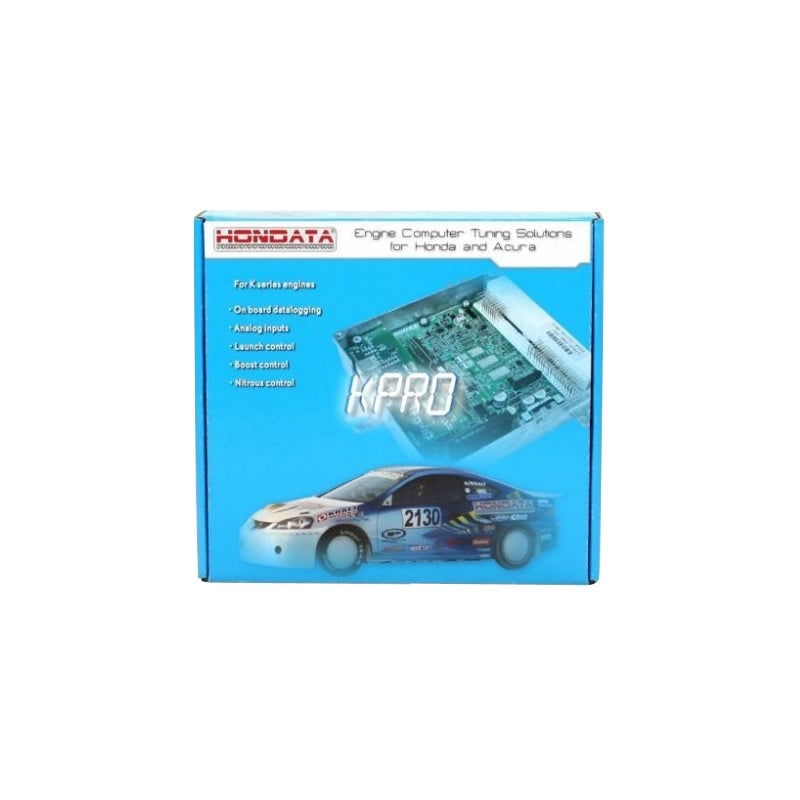

Hondata KPro ECU - Civic EP3 (01-06, EUDM)

Product Features:

• Designed and assembled in USA
• Fit inside the standard ECU
• USB connection for speed and compatibility
• KManager Windows based software for parameter & table editing,calibration uploading and datalogging.
• Many built-in calibrations for common engine combinations
• Built in data-logging to a laptop
• On board data-logging memory (8 MB memory,10-215 minutes data-logging)
• Adjustment for different sized injectors,with overall fuel trim
• Configurable for any MAP sensor (to 5 Bar and above)
• TPS based table lookup for ITBs
• Engine protection from lean air fuel ratios,over boost and low oil/fuel pressure
• Expanded fuel and ignition tables,both in rpm and load,to 60 lbs boost and 11,000 rpm (these are not the upper limits)
• Launch control with anti-lag
• Three multi-purpose outputs for nitrous control or ��� Supports lambda tracing from the stock wideband O2 or aftermarket wideband
• PWM output for boost control
• Bluetooth support and Hondata Mobile app.
• Ethanol sensor input for flex fuel capability
• Alternate speed sensor input
• Dash output serial and CAN streams
• Live tuning and auto tune

K Manager Software Features:

• High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning
• Injector size fuel trim
• Fuel trim for starting,throttle tip in and individual cylinder trim
• Rev limiter with fuel cut
• Launch control with anti-lag
• Adjustable VTEC window with load and throttle control
• Adjustable idle speed
• MAP sensor type and calibration
• Adjustable boost cut with hot and cold settings
• Closed loop control
• Air temperature compensation
• Fuel and ignition correction based on gear
• Closed loop
• Three general purpose outputs for nitrous control,quad boost control or similar
• On board datalogging trigger conditions

Please Note: These ECU's are only for European customers. If you are outside of Europe,please consult your local Hondata dealer. The KPRO ECU board is supplied pre-fitted into a used,tested,standard ECU for easy installation.

Suitable For:

• Civic Type R EP3 (2001-2006) European Spec ONLY.
