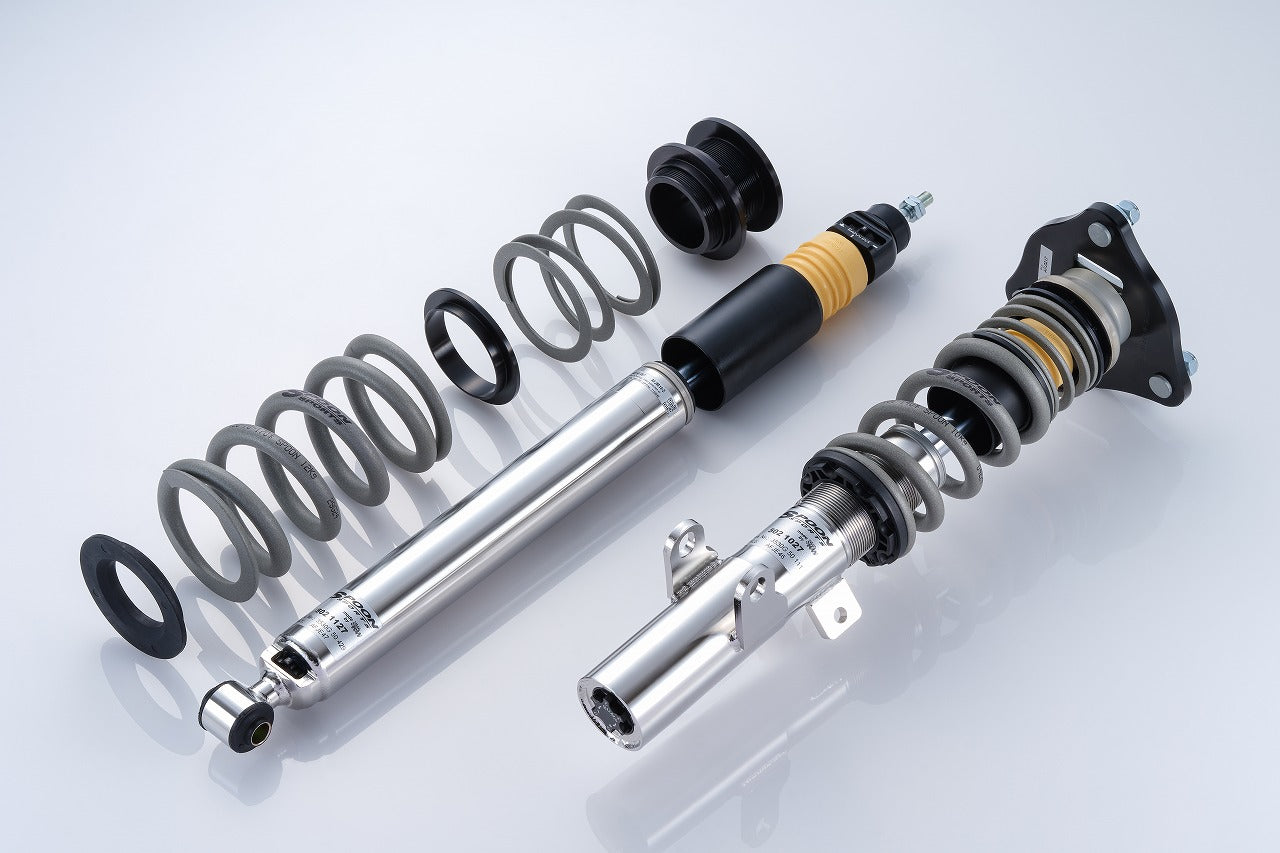

Spoon Sports Full Spec Damper Suspension Kit - Civic Type R FK8 / FL5

Product Features:

Spring Rate Fr: 10kgf/mm (140mm ID60), Rr: 12kgf/mm (170mm ID70)
Factory height: compared to stock Fr: -20mm Rr: -25mm
Factory height: jack point Fr: 140mm Rr: 155mm
Recommended vehicle height adjustment range: compared to stock Fr: 0 to -35mm Rr: 0 to -40mm
Damping adjustment range BUMP 12 steps/REBOUND 16 steps
Recommended damping dial position BUMP Fr: 6 steps Rr: 6 steps
REBOUND Fr: 9 steps Rr: 9 steps
Factory camber value Fr: -2° Rr: -2°
Camber adjustment range Fr: -1.0 to -3.0°

Damper control canceller, hook wrench, and damping adjustment dial included.

We will be competing in the North American Thunderhill 25 Hours with the FK8 in 2021 and the FL5 in 2023, and have begun developing a coilover suspension for the FK8/FL5 with the cooperation of North American KW.

Based on the data obtained from actual races, we have conducted repeated tests on the street, circuit, and winding roads to develop a full-spec damper kit that can be used on both the street and the circuit.

The damping force is adjusted in two ways: on the extension side and the compression side, and the front is equipped with a camber-adjustable upper mount.
A wide range of adjustments can be made to suit the driving stage.

Experience the smooth, flat ride feel when driving around town and the direct, smooth cornering that approaches that of a racing car when driving in sports.

Our motorsports program running the 25 Hours of Thunderhill in 2021 with the FK8 and with the FL5 in 2023, led us to develop coilover suspensions for the FK8/FL5 in partnership with KW USA.

The vast data accumulated from racing served as the bases of our suspension development, setting an ambitious goal to create a product optimized for track, street and the winding roads. After numerous testing on the track and on the winding roads, we are proud to introduce this full-spec coilover kit.

Designed with a 2-Way adjustable damping system, the front pair comes with camber adjustable upper-mounts to accommodate various driving environments.
Providing a smooth flat ride on the street, the suspension can be adjusted for more direct and aggressive cornering feel for track use.
