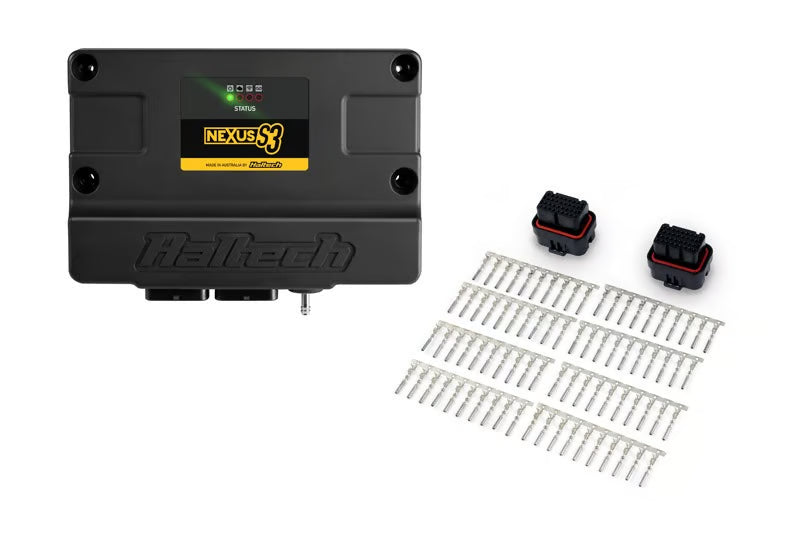

Haltech Nexus S3 ECU + Plug and Pin Set
PRICE:
- Description
The Haltech Nexus S3 ECU with Plug and Pin Set (HT-213100) pairs the Nexus S3 engine management ECU with a matching connector kit, so you build a bespoke wiring harness straight from the factory ECU plug.
Inside the ECU you get 8 x peak/hold injector drivers (also usable as low side drive outputs), 8 x low current ignition outputs (also usable as low side drive outputs), 6 x low side drive outputs (PWM capable, DPOs), 4 x push-pull/half bridge outputs (8A, PWM capable, for example for electronic throttle), 1 x ECR output, 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup, trigger and home inputs with differential inputs, adjustable thresholds and glitch filters, and 6 x synchronous pulsed inputs (zero crossing or adjustable thresholds) for cam sensor inputs, frequency inputs or 0-5V analog inputs. An on-board wideband controller supports NTK and LSU 4.9 sensors, backed by an on-board 4 bar MAP sensor, 2 x CAN ports with switchable termination, and onboard data logging of up to 300 channels at sample rates up to 1ms (1kHz) with 128MB of internal memory. The included plug and pin set uses a Superseal connector and fits Haltech Nexus products that use the Key 2 / 34 position connector, supplied as a 34 pin (Key 1) plug and pin set.
- 8 x peak/hold injector drivers, usable as low side drive outputs
- On-board wideband controller supports NTK and LSU 4.9 sensors
- On-board 4 bar MAP sensor and 2 x CAN ports with switchable termination
- Onboard data logging: up to 300 channels at 1ms (1kHz) sample rates, 128MB internal memory
- Plug 'n' Play adaptor harness uses the factory ECU connectors, no cutting required
In the box:
- Nexus S3 ECU
- 34 pin (Key 1) plug and pin set, Superseal connector, for Haltech Nexus products using the Key 2 / 34 position connector
