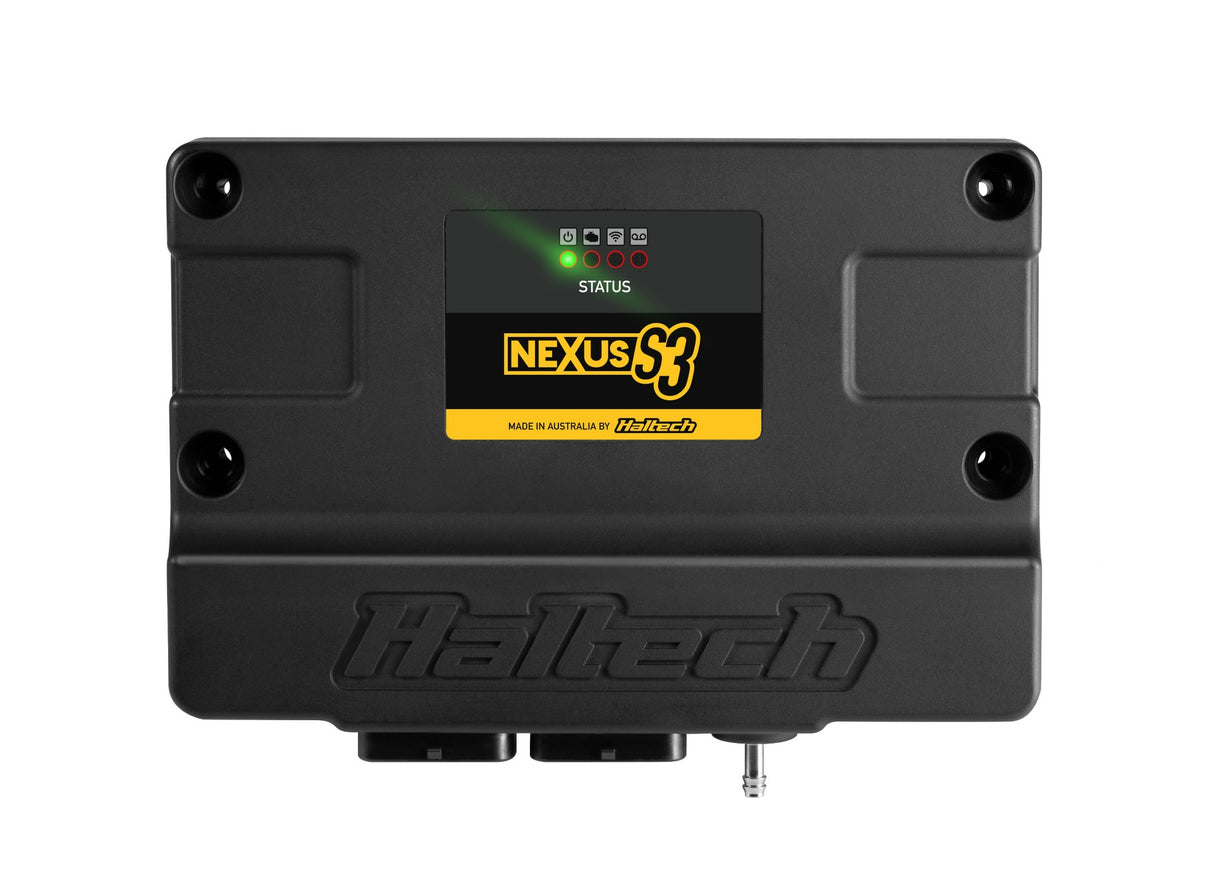

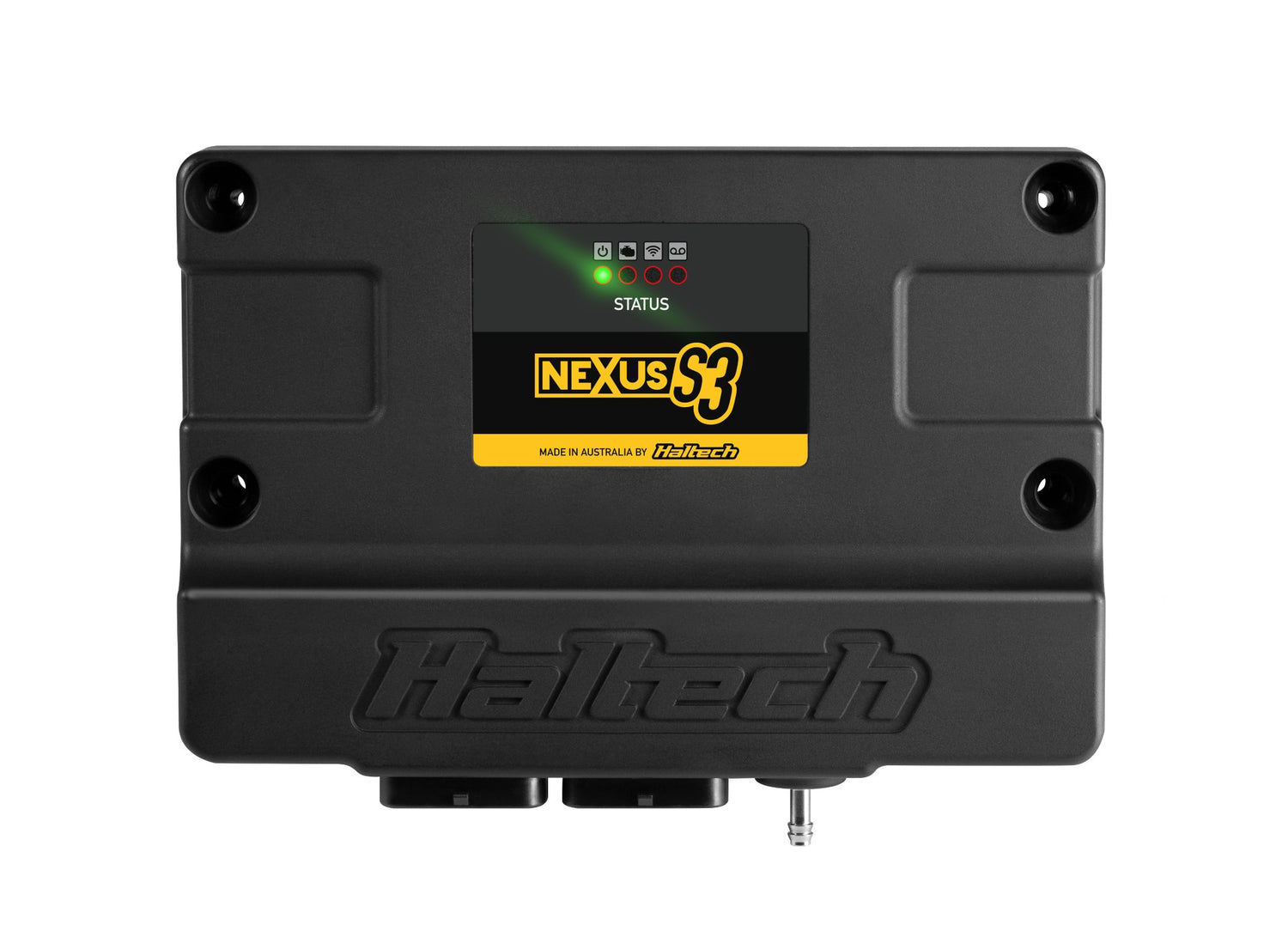

Haltech Nexus S3 ECU Only
PRICE:
- Description
The Haltech Nexus S3 (HT-213000) is a standalone engine management ECU built as the successor to the Elite 2500, giving engine builders full control to design a custom wiring harness for the application.
Inside the ECU you get 8 x peak/hold injector drivers (also usable as low side drive outputs), 8 x low current ignition outputs (also usable as low side drive outputs), 6 x low side drive outputs (PWM capable, DPOs), 4 x push-pull/half bridge outputs (8A, PWM capable, for example for electronic throttle), 1 x ECR output, 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup, trigger and home inputs with differential inputs, adjustable thresholds and glitch filters, and 6 x synchronous pulsed inputs (zero crossing or adjustable thresholds) for cam sensor inputs, frequency inputs or 0-5V analog inputs. An on-board wideband controller supports NTK and LSU 4.9 sensors, backed by an on-board 4 bar MAP sensor, 2 x CAN ports with switchable termination, and onboard data logging of up to 300 channels at sample rates up to 1ms (1kHz) with 128MB of internal memory.
- 8 x peak/hold injector drivers, usable as low side drive outputs
- On-board wideband controller supports NTK and LSU 4.9 sensors
- On-board 4 bar MAP sensor and 2 x CAN ports with switchable termination
- Onboard data logging: up to 300 channels at 1ms (1kHz) sample rates, 128MB internal memory
- Plug 'n' Play adaptor harness uses the factory ECU connectors, no cutting required
Compatible OEM Numbers
