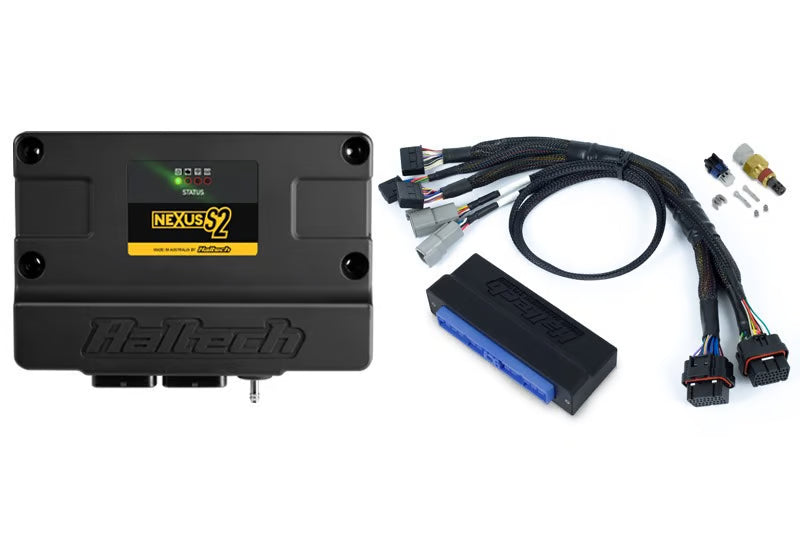

Haltech Nexus S2 Plug 'n' Play ECU and Adapter Harness Kit - Nissan Silvia S15

The Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit (HT-212317) gives you a complete ECU upgrade for a Nissan Silvia S15, using the factory ECU connectors so you avoid cutting or splicing the original harness.

Inside the ECU you get 4 x peak/hold injector drivers (also usable as low side drive outputs), 4 x low current ignition outputs (also usable as low side drive outputs), 6 x low side drive outputs (PWM capable, DPOs), 4 x push-pull/half bridge outputs (8A, PWM capable, for example for electronic throttle), 1 x ECR output, 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup, trigger and home inputs with differential inputs, adjustable thresholds and glitch filters, and 6 x synchronous pulsed inputs (zero crossing or adjustable thresholds) for cam sensor inputs, frequency inputs or 0-5V analog inputs. An on-board wideband controller supports NTK and LSU 4.9 sensors, backed by an on-board 4 bar MAP sensor, 2 x CAN ports with switchable termination, and onboard data logging of up to 300 channels at sample rates up to 1ms (1kHz) with 128MB of internal memory. You connect the kit directly to the factory harness and get the ECU running within a few hours, guided by the quick start guide.

• 4 x peak/hold injector drivers, usable as low side drive outputs
• On-board wideband controller supports NTK and LSU 4.9 sensors
• On-board 4 bar MAP sensor and 2 x CAN ports with switchable termination
• Onboard data logging: up to 300 channels at 1ms (1kHz) sample rates, 128MB internal memory
• Plug 'n' Play adaptor harness uses the factory ECU connectors, no cutting required

In the box:

• Nexus S2 ECU
• Injection molded plastic plug 'n' play adaptor harness
• M14 x 1.5 air temperature sensor with matching plug and pins
• Auxiliary I/O 16 Pin Tyco plug and pins

Suits: Australian Delivered and JDM variants, manual transmission only:

• Nissan Silvia (S15) (1999-2002)
• Nissan 200SX/Silvia S14A S2 "Kouki"
• Nissan 180SX S13 Rev 3 "Type X" (1996 onwards)
• Nissan Pulsar N15 and N14 SSS and GTI-R
• Nissan Micra K11 (CG13DE)

Please note: Manual transmission only. Using a Nexus S2 instead of a Nexus S3 reduces some of the car's factory functionality; refer to the quick start guide for details.

• 1999 to 2002 Nissan Silvia (S15)
