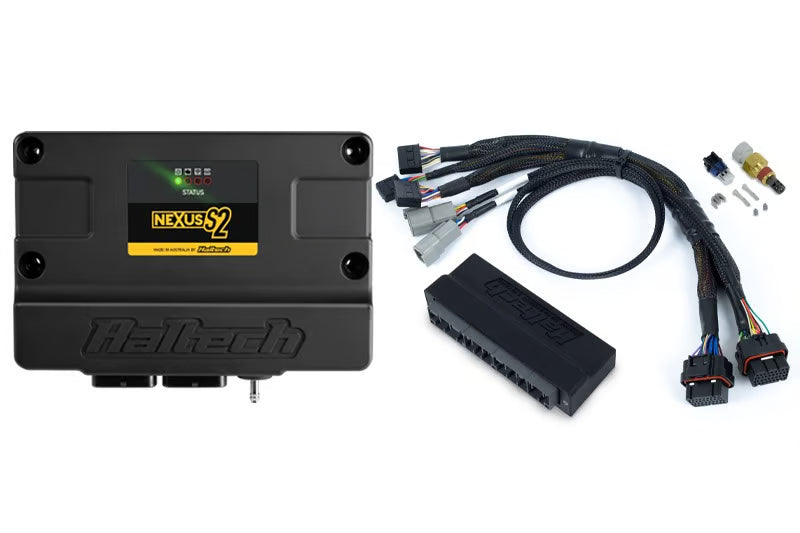

Haltech Nexus S2 Plug 'n' Play ECU and Adapter Harness Kit - Honda AP1 SS3

The Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit (HT-212314) gives you a complete ECU upgrade for a Honda S2000, using the factory ECU connectors so you avoid cutting or splicing the original harness.

Inside the ECU you get 4 x peak/hold injector drivers (also usable as low side drive outputs), 4 x low current ignition outputs (also usable as low side drive outputs), 6 x low side drive outputs (PWM capable, DPOs), 4 x push-pull/half bridge outputs (8A, PWM capable, for example for electronic throttle), 1 x ECR output, 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup, trigger and home inputs with differential inputs, adjustable thresholds and glitch filters, and 6 x synchronous pulsed inputs (zero crossing or adjustable thresholds) for cam sensor inputs, frequency inputs or 0-5V analog inputs. An on-board wideband controller supports NTK and LSU 4.9 sensors, backed by an on-board 4 bar MAP sensor, 2 x CAN ports with switchable termination, and onboard data logging of up to 300 channels at sample rates up to 1ms (1kHz) with 128MB of internal memory. You connect the kit directly to the factory harness and get the ECU running within a few hours, guided by the quick start guide.

• 4 x peak/hold injector drivers, usable as low side drive outputs
• On-board wideband controller supports NTK and LSU 4.9 sensors
• On-board 4 bar MAP sensor and 2 x CAN ports with switchable termination
• Onboard data logging: up to 300 channels at 1ms (1kHz) sample rates, 128MB internal memory
• Plug 'n' Play adaptor harness uses the factory ECU connectors, no cutting required

In the box:

• Nexus S2 ECU
• Injection molded plastic plug 'n' play adaptor harness
• M14 x 1.5 air temperature sensor with matching plug and pins
• Auxiliary I/O 16 Pin Tyco plug and pins

Suits: Non Drive-By-Wire (non-DBW) applications only:

• Honda S2000 (AP1) (1999-2009)
• Honda S2000 AP1 (2000-2004) and AP2 (2005), non-DBW throttle only

Please note: Non Drive-By-Wire (DBW) application only. Using a Nexus S2 instead of a Nexus S3 reduces some of the car's factory functionality. See the quick start guide for further information.

• 1999 to 2009 Honda S2000 (AP1)
