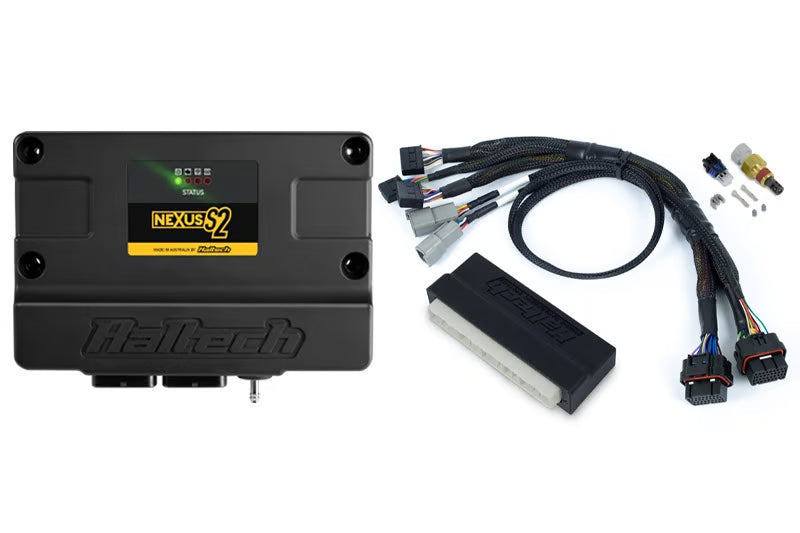

Haltech Nexus S2 Plug 'n' Play ECU and Adapter Harness Kit - Honda DC5

The Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit (HT-212301) replaces the factory ECU on the Honda Integra DC5 with a Nexus S2 ECU, using a factory-matching adapter harness so you avoid cutting the original loom.

The Nexus S2 succeeds the Elite 1500 and provides 4 peak/hold injector drivers, 4 low current ignition outputs, 6 low side PWM-capable DPOs, 4 push-pull/half bridge outputs (8A, PWM capable) and 1 ECR output. It reads 11 x 0-5V analog inputs with redundancy and switchable 5V pullup, differential trigger and home inputs with adjustable thresholds and glitch filters, and 6 synchronous pulsed inputs. It has 1 onboard wideband controller supporting NTK and LSU 4.9, 1 onboard 4 bar MAP sensor, 2 CAN ports with switchable termination, and onboard logging of up to 300 channels at rates up to 1ms (1kHz) with 128MB of internal memory. The kit suits the Integra DC5/Acura RSX 2005-2006, manual transmission only, and does not support the factory multiplexed coolant temperature gauge, battery light or AC request, so check the quick start guide for detail. Using a Nexus S2 instead of a Nexus S3 reduces some of the car's factory functionality.

• Plug 'n' play replacement for the factory ECU, no factory harness modification needed
• Onboard wideband controller supporting NTK and LSU 4.9
• Onboard 4 bar MAP sensor and 2 CAN ports with switchable termination
• Manual transmission only

In the box:

• Nexus S2 ECU
• Injection moulded plastic plug 'n' play adapter harness
• M14 x 1.5 air temperature sensor with matching plug and pins
• Auxiliary I/O 16 pin Tyco plug and pins

Suits:

• Honda Integra Type R (DC5) (2001-2006)

Please note: Manual transmission only. Does not support the factory multiplexed coolant temperature gauge, battery light and AC request, see the quick start guide for detail. Using a Nexus S2 instead of a Nexus S3 reduces some of the car's factory functionality.

• 2001 to 2006 Honda Integra Type R (DC5)
