Haltech Nexus S2 ECU + Universal Wire-in Harness - 2.5m (8)
PRICE:
- Description

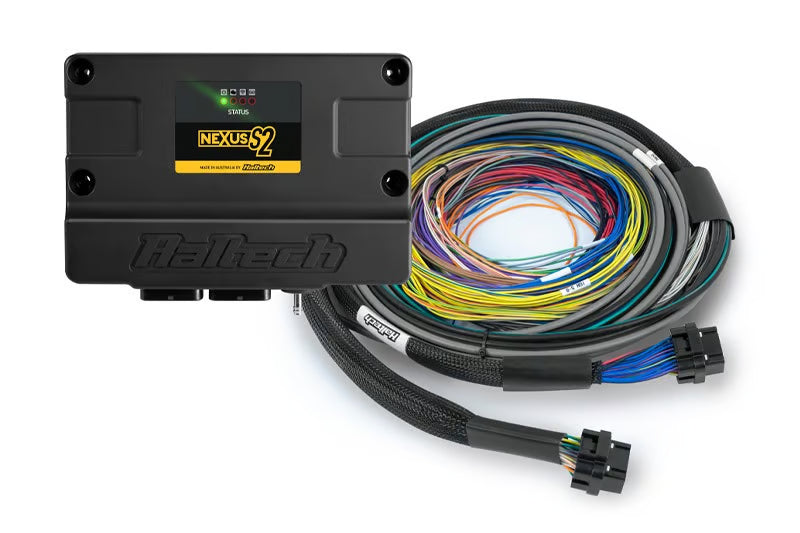

The Haltech Nexus S2 ECU + Universal Wire-in Harness (HT-212200) pairs the Nexus S2 ECU with a 2.5m wire-in harness, ideal for modified street cars, engine swaps and custom wiring jobs.
The S2 is the successor to the Elite 1500, providing 4 peak/hold injector drivers, 4 low current ignition outputs, 6 low side PWM-capable DPOs, 4 push-pull/half bridge outputs (8A, PWM capable) and 1 ECR output. It reads 11 x 0-5V analog inputs with redundancy and switchable 5V pullup, differential trigger and home inputs with adjustable thresholds and glitch filters, and 6 synchronous pulsed inputs. It has 1 onboard wideband controller supporting NTK and LSU 4.9, 1 onboard 4 bar MAP sensor, 2 CAN ports with switchable termination, and onboard logging of up to 300 channels at rates up to 1ms (1kHz) with 128MB of internal memory. The 2.5m Universal Wire-in Harness terminates at the ECU end and leaves unterminated wires at the other, each colour coded and labelled to match the wiring diagram, which is supplied with the quick start guide, with software downloadable from the Haltech website.
- 4 injector drivers, 4 ignition outputs and 6 low side DPOs
- Onboard wideband controller supporting NTK and LSU 4.9
- Onboard 4 bar MAP sensor and 2 CAN ports with switchable termination
- 2.5m colour coded, labelled wire-in harness for custom looms
Compatible OEM Numbers
