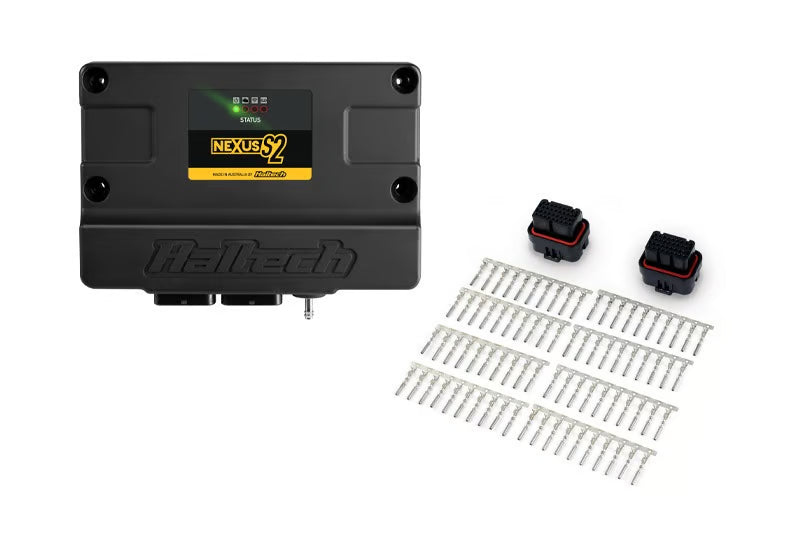

Haltech Nexus S2 ECU + Plug and Pin Set
PRICE:
- Description
The Haltech Nexus S2 ECU + Plug and Pin Set (HT-212100) combines the Nexus S2 ECU with the connector and pins needed to wire it in.
The S2 is the successor to the Elite 1500, providing 4 peak/hold injector drivers, 4 low current ignition outputs, 6 low side PWM-capable DPOs, 4 push-pull/half bridge outputs (8A, PWM capable) and 1 ECR output. It reads 11 x 0-5V analog inputs with redundancy and switchable 5V pullup, differential trigger and home inputs with adjustable thresholds and glitch filters, and 6 synchronous pulsed inputs. It has 1 onboard wideband controller supporting NTK and LSU 4.9, 1 onboard 4 bar MAP sensor, 2 CAN ports with switchable termination, and onboard logging of up to 300 channels at rates up to 1ms (1kHz) with 128MB of internal memory. The plug and pin set is compatible with Haltech Nexus products that use the Key 2, 34 position connector, and uses a Superseal connector with 34 pin (Key 1) plugs and pins.
- 4 injector drivers, 4 ignition outputs and 6 low side DPOs
- Onboard wideband controller supporting NTK and LSU 4.9
- Onboard 4 bar MAP sensor and 2 CAN ports with switchable termination
- Includes a matching 34 pin (Key 1) Superseal plug and pin set
In the box: Nexus S2 ECU and a matching plug and pin set.
