Haltech Nexus S2 ECU Only
PRICE:
- Description

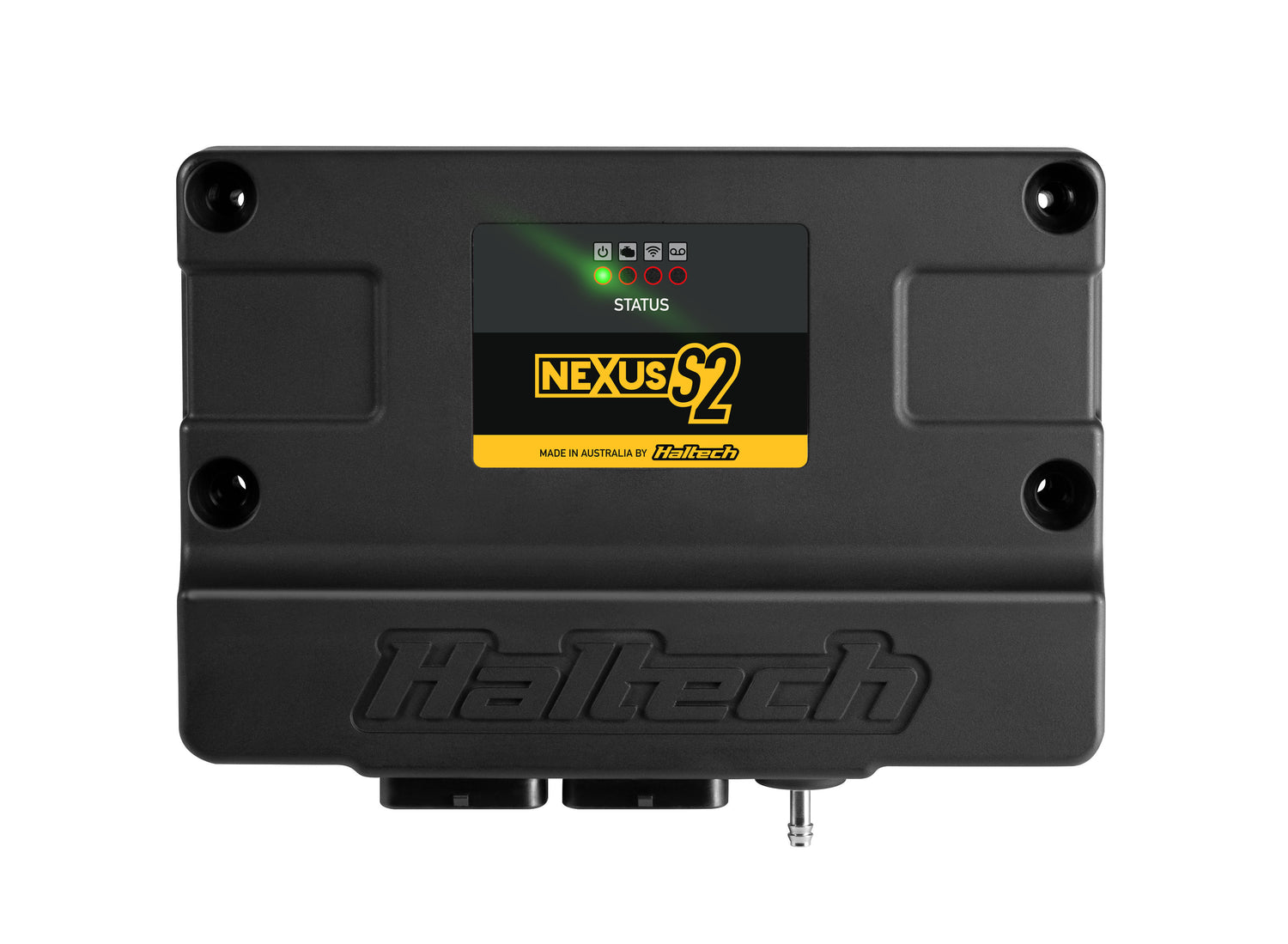

The Haltech Nexus S2 ECU (HT-212000) is the successor to the Elite 1500, carrying over its feature set with new functionality and the extra processing power of the Nexus platform.
The S2 provides 4 peak/hold injector drivers that double as low side outputs, 4 low current ignition outputs, 6 low side PWM-capable DPOs, 4 push-pull/half bridge outputs (8A, PWM capable, for electronic throttle) and 1 ECR output. It reads 11 x 0-5V analog inputs with redundancy and switchable 5V pullup, differential trigger and home inputs with adjustable thresholds and glitch filters, and 6 synchronous pulsed inputs for cam sensors, frequency signals or 0-5V analog use. It has 1 onboard wideband controller supporting NTK and LSU 4.9, 1 onboard 4 bar MAP sensor, 2 CAN ports with switchable termination, and onboard data logging of up to 300 channels at rates up to 1ms (1kHz) with 128MB of internal memory.
- 4 injector drivers and 4 ignition outputs, plus 6 low side DPOs
- Onboard wideband controller supporting NTK and LSU 4.9
- Onboard 4 bar MAP sensor and 2 CAN ports with switchable termination
- Onboard logging: 300 channels at up to 1kHz with 128MB storage
Compatible OEM Numbers
