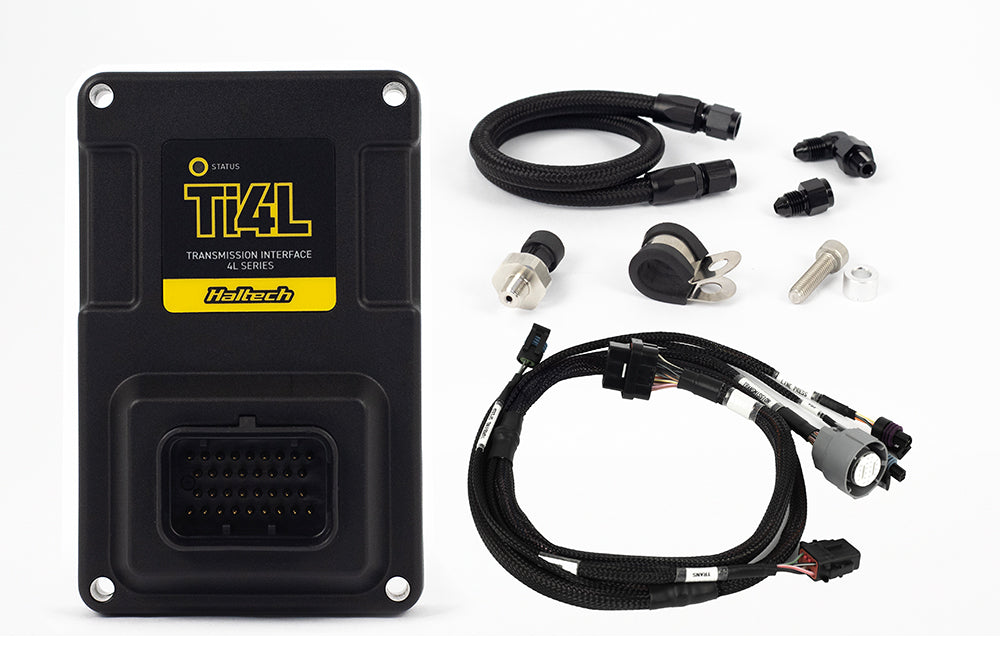

Haltech Nexus Ti4L Transmission Interface Kit - Suits GM 4L Series
PRICE:
- Description
The Haltech Nexus Ti4L Transmission Interface Kit (HT-196001) gives you control of GM's 4L series automatic transmissions through your Nexus ECU or VCU, adding transmission control as an expansion module rather than a separate standalone unit.
You program the Ti4L through the Haltech NSP software, and Rebel LS users can also run through the set-up wizard in the Haltech Connect App. The unit applies closed loop line pressure control with long-term learning, so shift quality improves the more you drive. It supports the 4L60E, 4L65E and 4L70E (non-4x4, 2006-2008 only; 2009 onwards use different pinouts on the main transmission connector), and the 4L80E and 4L85E (non-4x4, 1994 onwards only; 1991-1993 use a different main transmission connector).
- Expansion module for the Haltech Nexus ECU and VCU range
- Programmed via NSP software, or the Haltech Connect App set-up wizard for Rebel LS
- Closed loop line pressure control with long-term shift learning
- Supports 4L60E, 4L65E, 4L70E, 4L80E and 4L85E transmissions
Suits:
- 4L60E, 4L65E, 4L70E (non-4x4, 2006-2008 only; 2009 onwards use different pinouts on the main transmission connector)
- 4L80E, 4L85E (non-4x4, 1994 onwards only; 1991-1993 use a different main transmission connector)
Compatible OEM Numbers
