Haltech Elite PRO Direct Plug-in Ford Falcon i6 "Barra" ECU Only

The Haltech HT-154000 Elite Pro Plug-in ECU gives you a genuine plug and play upgrade for the popular Ford Falcon BA and BF models, connecting directly to the factory wiring harness without rewiring.

The ECU fits the factory ECU location and includes an onboard wideband controller with race-level functions. Beyond closed loop boost control, anti-lag and launch control, and short and long term learning for fuel, ignition, boost and idle, it also controls factory functions including variable cam control, cruise control, the dash cluster and the 6-speed automatic transmission (ZF 6HP26) via CAN. The case is die-cast aluminium and water resistant. The ECU supports E85 flex fuel and multiple fuels including petrol, methanol and ethanol, with an internal single channel wideband that supports the LSU 4.9 sensor. It is OBDII compatible, so you can set and clear diagnostic trouble codes and view live engine data. Knock control uses high speed digital filtering, and multi-level engine protection guards the engine. The bundled ESP calibration software gives you 4D tuning tables combined with 3D per-cylinder compensations and multiple user-definable corrections.

• Die-cast aluminium, water resistant case
• Onboard automatic transmission control via CAN (ZF 6HP26)
• E85 flex fuel ready, supports petrol, methanol and ethanol
• Internal single channel wideband, supports LSU 4.9 sensor
• OBDII compatible with closed loop boost, idle and O2 control
• Anti-lag and launch control with drag and rally modes

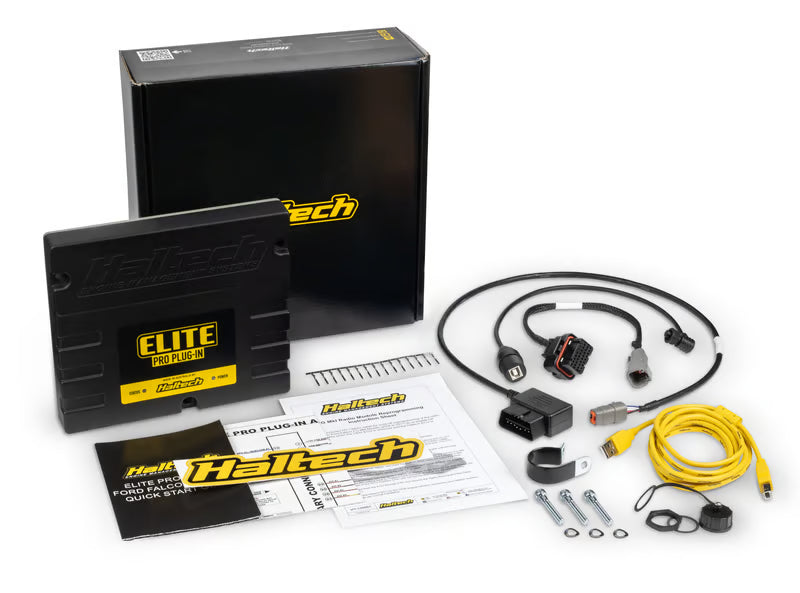

Includes:

• Elite PRO Plug-in ECU
• 400mm (16in) waterproof (Type B) USB connection cable to mini circular connector with waterproof cap
• Auxiliary AMP 34-pin superseal connector with Elite CAN DTM-4 female receptacle/socket
• 30 waterproofing/blanking pins
• 10 spare pins to populate auxiliary I/O positions

Suits:

• Ford Falcon BA (02-05), BF and BF MKII (05-08), FG, FG MKII and FG X (08-16), I6 4.0L DOHC VCT Barra engine, manual transmission
• Ford Falcon BF and BF MKII (05-08), FG, FG MKII and FG X (08-16), I6 4.0L DOHC VCT Barra engine, ZF 6HP26 6-speed auto
• Naturally aspirated and turbo
