Haltech uC-10 Display Dash
PRICE:
- Description

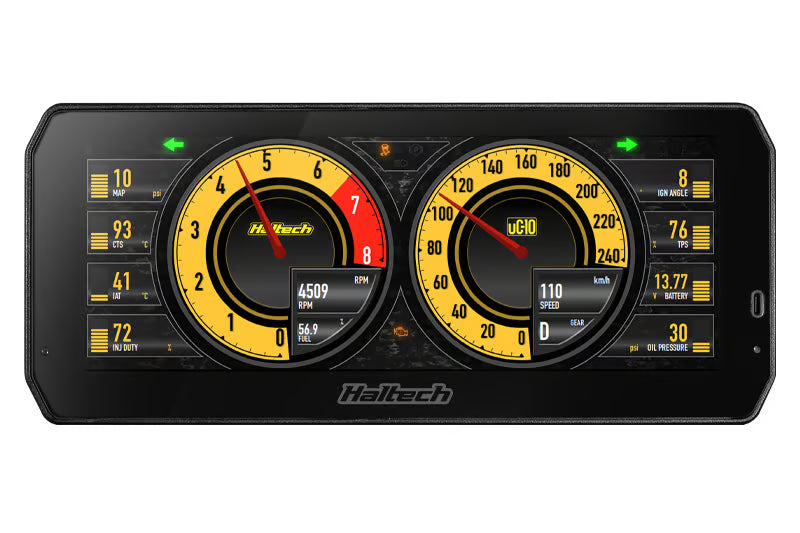

The Haltech uC-10 Display Dash, part number HT-068000, puts full control of your vehicle's data on a full colour screen that you configure yourself through Haltech's NSP software.
You design your own display layouts and arrange gauges to show the data you choose, then wire the dash to Haltech CAN, OBD2 or a range of aftermarket ECUs, or run it as a stand-alone unit. Plug'n'Play support covers Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series and MoTeC hundred series (M400, M600, M800 gold box ECUs), and Syvecs. The screen is a TFT panel with optical bonding at 1280 x 480 resolution with over 600 lumens brightness and a 70-degree minimum viewing angle, vertical and horizontal. IP64 rated, the dash is dust-tight and protected against water splashes. OBDII functionality needs adapter cable HT-135003, which is not included.
- 10 x user-configurable Analogue Voltage Inputs (AVIPs), 4 x Digital Pulsed Outputs (DPOs), 4 x Switched Pulsed Inputs (SPIs), 1 x dedicated Tacho Input and 1 x dedicated alternator excite
- 512MB on-board looped data logging and a 6-digit odometer
- Two ambient light sensors for automatic screen dimming
- IP64 rated: dust-tight and protected against water splashes
- Works as a central data hub or I/O expander in an existing Haltech CAN network
In the box:
- 1 x Haltech uC-10 Digital Dash
- 1 x 34 pin connector, the same as fitted to HT-131001
- 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in)
- 1 x USB-C cable
- 3 x M5 x 8mm mounting screws
- 2 x momentary switches
- Pre-terminated 800mm 22AWG cable
- 1 x glass mount Wi-Fi antenna (Wi-Fi functionality arrives with a future firmware update)
- 1 x Haltech fabric keytag, quick start guide and Haltech stickers
Suits:
- All current Haltech ECUs via CAN
- Plug'n'Play with Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series and MoTeC hundred series (M400, M600, M800 gold box ECUs), and Syvecs
Compatible OEM Numbers
