Haltech Stand Alone IC-7 Colour Dash Classic Install Kit - CAN

The Haltech Stand Alone IC-7 Colour Dash "Classic" Install Kit, part number HT-067014, lets you fit a full colour digital dash to a vehicle running a carburettor or mechanical injection, with no ECU fitted.

The kit builds on the iC-7 Display Dash: a full colour screen with custom displays, I/O sharing with Haltech Elite and Nexus ECUs only, on-board datalogging, auto-dimming brightness and a user-programmable multi-colour shift light bar, configured through Haltech software over USB. IP64 rated, the dash is dust-tight and protected against water splashes. For stand-alone fitment the kit adds a 1/8 NPT coolant temperature sensor, two 0-150 psi fuel/oil pressure sensors and a brass 1/8" NPTF to 3/8" NPTF adapter, so you can wire the dash into a non-EFI vehicle.

• 9 x Analog Voltage Inputs (AVI), 3 x Digital Pulsed Inputs (DPI), 1 x Tachometer input and 4 x Digital Pulsed Outputs (DPO)
• 14 programmable, seven colour shift light LEDs
• 512MB on-board datalogging
• IP64 rated: dust-tight and protected against water splashes
• Two 0-150 psi fuel/oil pressure sensors plus a 1/8 NPT coolant temperature sensor

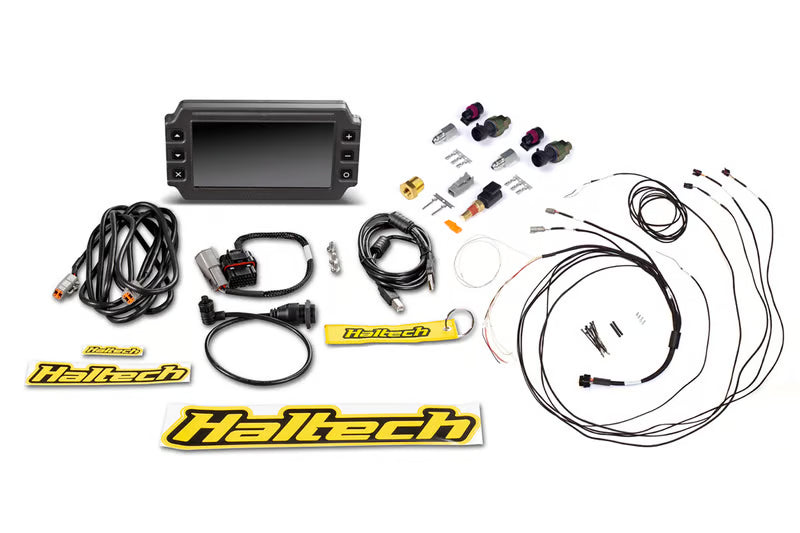

In the box:

• 1 x Haltech iC-7 Dash
• 1 x 34 pin main connector harness
• 1 x DTM-4 to DTM-4 CAN cable 3.0m (118in)
• 1 x USB to M5 right angle cable
• 1 x USB cable
• 1 x iC-7 semi terminated harness
• 1 x 1/8 NPT coolant temperature sensor
• 2 x 0-150 psi fuel/oil pressure sensors
• 1 x 3/8 NPTF to 1/8 NPTF adapter

Suits:

• Hot rods, muscle cars with mechanical injection and carburetted classics
• Any carburetted vehicle, a vehicle with mechanical injection, or a vehicle without an ECU

Please note: wire the coolant temperature sensor with care, as incorrect wiring will damage it. Each MAP and pressure sensor is tested before packaging and sold as-is with no further warranty; opened sensors cannot be returned, so send back an unopened sensor in its original packaging for a full refund.
