Haltech IC-7 7in Colour Dash Kit
PRICE:
- Description

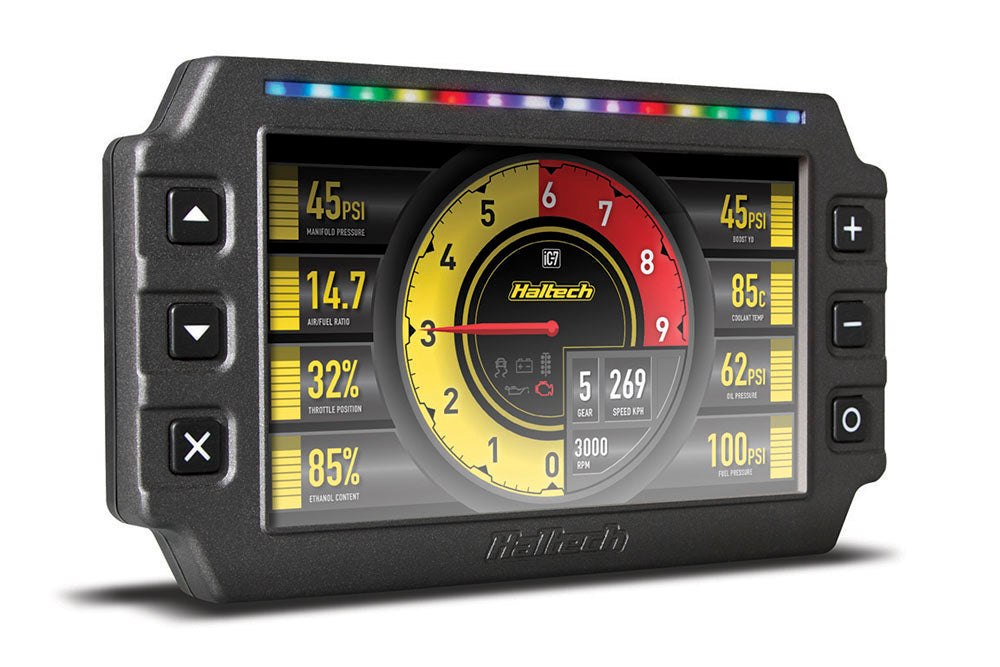

The Haltech IC-7 7in Colour Dash Kit, part number HT-067010, replaces your analogue gauge cluster with a full colour digital dash that links to your Haltech ECU over CAN.
Designed and manufactured in Australia, the iC-7 offers custom screen displays, I/O sharing with Haltech Elite and Nexus ECUs only, on-board datalogging, auto-dimming ambient light reactive brightness and a user-programmable multi-colour shift light bar. You set channels, units, alarms and inputs and outputs through Haltech software over a USB cable, and control the dash from face-mounted buttons. IP64 rated, the dash is dust-tight and protected against water splashes. OBD-II and stand-alone versions of the dash are also sold as separate items.
- 9 x Analog Voltage Inputs (AVI), 3 x Digital Pulsed Inputs (DPI), 1 x Tachometer input and 4 x Digital Pulsed Outputs (DPO)
- 14 programmable, seven colour shift light LEDs
- 512MB on-board datalogging
- IP64 rated: dust-tight and protected against water splashes
- Automatic brightness dimming with user adjustable control
In the box: Haltech iC-7 Display Dash, 34 pin main connector harness with spare pins for input wiring, DTM-4 to DTM-4 CAN extension cable 3.0m (118in), USB to M5 right angle cable, USB cable, mounting screws, quick start guide, Haltech stickers and a fabric keyring tag.
Suits:
- All current Haltech ECUs via CAN
- Plug'n'Play with Link, MaxxECU, Microtech, MoTeC M1 series and MoTeC hundred series (M400, M600, M800 gold box ECUs), and Syvecs
Compatible OEM Numbers
