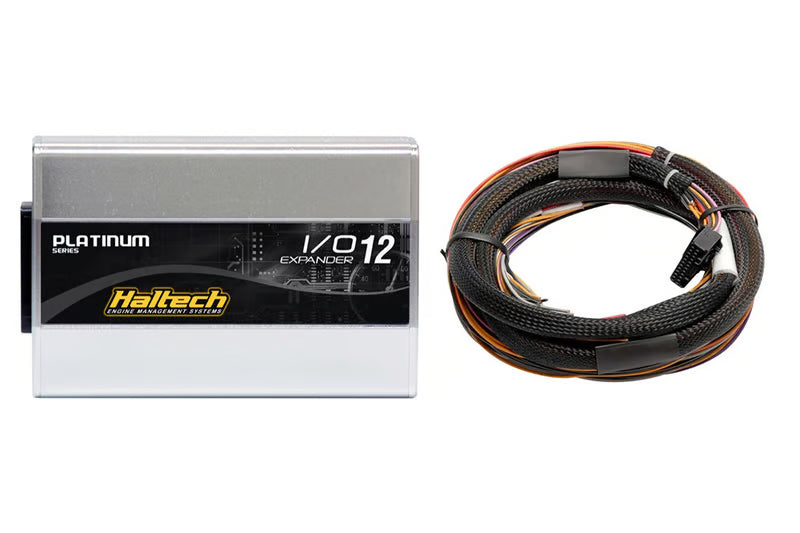

Haltech IO 12 Expander Box B - Flying Lead Harness 2.5m
PRICE:
- Description
The Haltech IO 12 Expander Box B, part number HT-059905, adds 12 extra CAN based input and output channels to a compatible Haltech ECU and comes fitted with a 2.5m (8ft) flying lead harness.
As supplied, the unit is direct plug and play compatible with an Elite ECU CAN port, an Elite ECU harness CAN connector, or a multiple CAN device installation using an Elite 4 Port CAN HUB. To connect it to a Platinum Pro Plug-in, Sport or Sprint ECU, order a Haltech CAN Cable (8 pin black Tyco to 8 pin black Tyco) in a length to suit your installation. To connect it as part of a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB, order a Haltech CAN Cable (8 pin white Tyco to 8 pin white Tyco). Cables are available from 75mm (3") to 3600mm (144"); check the product Quick Start Guide for the correct cable colour. The unit outputs 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI) and 4 Analogue Voltage Inputs (AVI). Combine two IO 12 Expanders with different CAN identifier IDs (Box A or B) for up to 24 additional channels, subject to ECU compatibility.
- 2.5m (8ft) flying lead harness fitted
- 4 Digital Pulsed Outputs (DPO)
- 4 Digital Pulsed Inputs (DPI)
- 4 Analogue Voltage Inputs (AVI)
- Combine two units for up to 24 additional channels
In the box:
- IO 12 Expander with matching flying lead harness
- Elite CAN cable, DTM-4 to 8 pin black Tyco, 300mm (12")
Compatible OEM Numbers
