Haltech IO 12 Expander Box A - CAN 12 Channel, Includes Plug & Pins
PRICE:
- Description
The Haltech IO 12 Expander Box A, part number HT-059902, adds 12 extra CAN based input and output channels to a compatible Haltech ECU and comes with a matching 24 pin Tyco plug and pins for a custom harness build.
As supplied, the unit is direct plug and play compatible with an Elite ECU CAN port, an Elite ECU harness CAN connector, or a multiple CAN device installation using an Elite 4 Port CAN HUB. To connect it to a Platinum Pro Plug-in, Sport or Sprint ECU, order a Haltech CAN Cable (8 pin black Tyco to 8 pin black Tyco) in a length to suit your installation. To connect it as part of a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB, order a Haltech CAN Cable (8 pin white Tyco to 8 pin white Tyco). Cables are available from 75mm (3") to 3600mm (144"); check the product Quick Start Guide for the correct cable colour. The unit outputs 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI) and 4 Analogue Voltage Inputs (AVI). Combine two IO 12 Expanders with different CAN IDs (Box A or B) for up to 24 additional channels, subject to ECU compatibility.
- Includes a matching 24 pin Tyco plug and pins
- 4 Digital Pulsed Outputs (DPO)
- 4 Digital Pulsed Inputs (DPI)
- 4 Analogue Voltage Inputs (AVI)
- Combine two units for up to 24 additional channels
In the box:

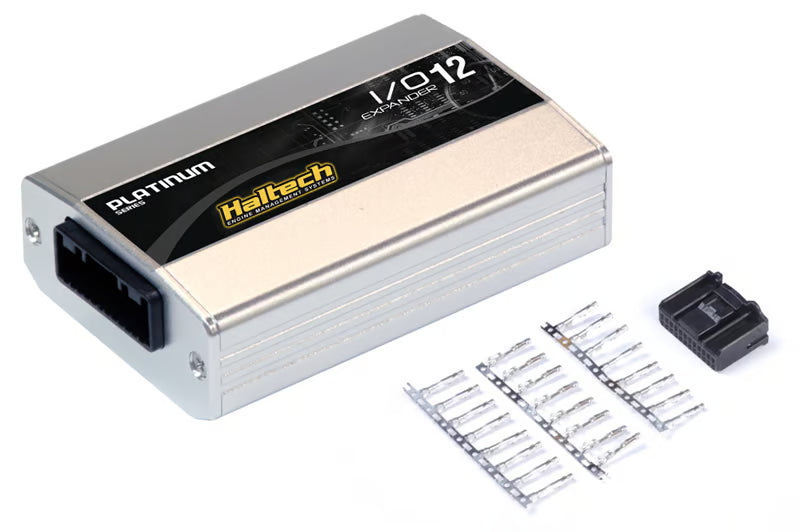

- IO 12 Expander with matching 24 pin Tyco plug and pins
- Elite CAN cable, DTM-4 to 8 pin black Tyco, 300mm (12")
